Have you ever scrolled through Pinterest and seen a beautiful dress or a cute romper with a perfectly gathered bodice? It looks so professional and stylish. You might have thought, “That’s gorgeous, but I could never make something like that.”
I’m here to tell you that you absolutely can!
Making a gathered bodice seems complicated, but it’s really just a series of simple, manageable steps. You don’t need to be a design expert. If you can draw a line and use a pair of scissors, you can create a custom pattern that fits you perfectly.
This pattern drafting tutorial is designed for beginners. We are going to walk through how to make a gathered bodice from start to finish. We’ll start with a basic bodice block and transform it into the beautiful, gathered top piece you’ve been dreaming of. Let’s get started!
What You’ll Need for This Project
Before we start drawing, let’s get our tools ready. You don’t need anything fancy. Most of these are basic sewing and drafting supplies you likely already have.
| Tool | Why You Need It |
|---|---|
| Pattern Paper | Large sheets of paper for drawing your pattern. Kraft paper or medical exam paper works great. |
| Pencils and Eraser | For drawing and making changes easily. |
| Measuring Tape | To take accurate body measurements. |
| Rulers (Straight & Curved) | A straight ruler for lines and a curved ruler (or a steady hand) for armholes and necklines. |
| Paper Scissors | A dedicated pair of scissors for cutting paper to keep your fabric scissors sharp. |
| Clear Tape | For making adjustments to your pattern pieces. |
Step 1: Drafting Your Basic Bodice Block
Every great design starts with a solid foundation. In sewing, that foundation is called a “block” or a “sloper.” Think of it as a basic map of your upper body. We will draw this first and then add the fancy design details later.
First, Get Your Measurements
For a perfect fit, you’ll need a few key measurements. Ask a friend to help you, or do your best with a mirror.
| Measurement Name | How to Measure |
|---|---|
| Shoulder to Shoulder | Measure across your back from the edge of one shoulder to the other. |
| Bust | Measure around the fullest part of your chest. |
| Underbust | Measure around your ribcage, directly underneath your bust. |
| Waist | Measure around the narrowest part of your torso. |
| Bust Point | Measure from your shoulder down to the fullest point of your bust (your nipple). |
| Nipple to Nipple | Measure the distance between one nipple and the other. |
Write these down so you have them handy.
Drawing the Foundation
Now, let’s put pencil to paper. We’ll start by drafting the front of our bodice.
- Start with a Line: On your pattern paper, draw a long, straight line at the top. This is your shoulder line.
- Mark the Shoulder: Take your shoulder measurement and divide it by two. Mark this on your shoulder line. For example, if your shoulder is 15 inches, you’ll make a mark at 7.5 inches.
- Create the Shoulder Slope: Shoulders aren’t perfectly straight. From your shoulder mark, go down by 1 inch and make a new mark. Connect this to the center with a slightly sloped line.
- Mark Your Vertical Points: Place your measuring tape at the top shoulder line. Measure down and mark your bust point, underbust, and waistline. Draw horizontal lines across the paper at each of these points.
- Draw the Dart: A dart is a small, triangle-shaped fold that we sew to give the flat fabric shape. To place it, take your nipple-to-nipple measurement and divide it by two. Mark this point on your bust, underbust, and waist lines. Draw a straight line connecting these marks. On the waistline, mark 1 inch on either side of this center line. Now, connect these two waist points up to a point that is 1 inch below your bust line. This creates your simple bust dart.
You’ve just drafted a basic bodice with a dart! This is the hardest part, and you did it.
Step 2: Creating the Sweetheart Neckline and Cups
Now for the fun part! We are going to turn our basic block into a design with a lovely sweetheart neckline.
We will use our basic block as a guide. Find the difference between your bust point and your underbust line. Let’s say it’s 3 inches. Using the bust point as your center, draw a circle with this 3-inch measurement. It doesn’t have to be perfect.
Next, on the side of the bodice (away from the center), draw a nice curve from the armhole down to the side of the circle you drew. Then, from the center front, draw a curved line up from the underbust to create the classic sweetheart shape.
Now, carefully cut out your pattern. You will have a top “cup” piece and a bottom “underbust” piece. On the bottom piece, tape the dart closed so it becomes one solid piece.

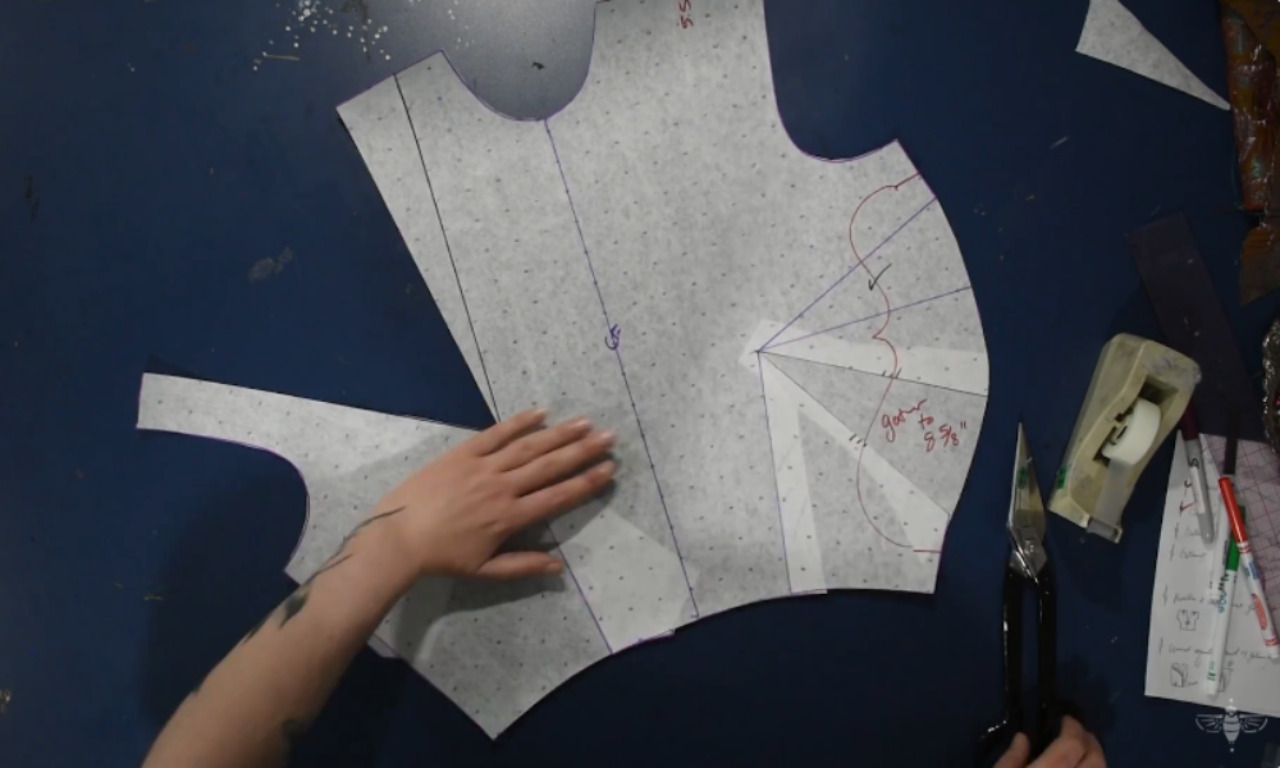

Step 3: The Magic of the “Slash and Spread Method”
This is where we create the room for our gathers. The slash and spread method is a simple pattern-making trick that adds fullness to a pattern piece.
Take your top cup pattern piece. Draw a few vertical lines on it from the bottom curve up toward the shoulder, spacing them about one inch apart.
Now, take your paper scissors and carefully cut along these lines from the bottom. Stop cutting about a quarter-inch from the top edge. You want to leave a small paper “hinge” so the pieces stay connected at the shoulder.
Place a new piece of pattern paper underneath. Tape down one side of the shoulder. Now, spread the slashed pieces apart. A good amount to spread each section is about 1.5 inches. This adds the extra fabric that you will later gather up. The more you spread, the more gathers you will have.
Once you have spread all the pieces, tape them down to the fresh paper. Carefully trace around the entire new shape. This new, larger piece is your final gathered bodice pattern for the front cup!
Step 4: Drafting the Back Pattern
The back pattern is much simpler. You’ll start with the same basic measurements, but with a few key differences.
First, remember to add a zipper allowance. Before you draw anything, mark a 1.5-inch margin along one edge of your paper. All your measurements will start from inside this line.
Draft the back just like you did the front, but the armhole curve will be shallower, and the dart will be a simple straight dart that runs from your upper back down to your waist. For the neckline, a simple shallow curve about 1 inch deep is perfect.
FAQs
How do I sew gathers for beginners?
Sewing gathers is easy. First, set your machine to a long stitch length. Sew two straight lines, one next to the other. Do not backstitch. Leave long threads at the end. Gently pull on the bottom threads. The fabric will bunch up. Slide the gathers until they look even.
How do I design a simple dress step by step?
Start with a simple shape. An A-line dress is a great choice. Draw your idea. Then, take your body measurements. You can draft a simple pattern or buy one. Pick an easy fabric like cotton. Cut out your pieces and sew them together.
Can a beginner make a dress?
Yes, absolutely! Beginners can make a dress. You should choose a simple pattern. Find one with only a few pieces. A pillowcase dress or a simple shift dress is a great first project. Just take your time and follow the steps.
How do I make a bodice stiff?
You can use interfacing to make a bodice stiff. Interfacing is a material you iron onto your fabric. It adds support and structure. For even more stiffness, you can add boning. Boning is thin plastic strips you sew into the seams.
How do I get perfect gathers?
For perfect gathers, sew two parallel lines of stitches. This gives you more control. Use a strong thread so it won’t snap. Pull the threads slowly. Use your fingers to spread the gathers evenly. Pin them carefully before sewing your final seam.
You’ve Created Your Pattern!
Look at that! You have a complete set of pattern pieces for a beautiful top with a gathered bust. You have a front underbust piece, a front cup piece (that you’ll cut two of), and a back piece (that you’ll also cut two of).
From here, you can attach these pieces to a skirt to make a dress or to shorts for a DIY romper pattern. By learning how to draft a bodice, you’ve opened up a whole new world of creative sewing projects.
This process shows that even the most stylish designs are built on simple shapes and clever tricks. You just learned one of the best ones.
What will you create with your new pattern-making skills? A summer dress, a cute top, or a playful romper? Let us know your plans in the comments below. We’d love to hear about your project
