⚡ Quick Answer: Threading a Side Release Buckle
A side release buckle has two halves and only one of them takes the webbing. Hold the male half with the prongs pointing away from you, push the webbing up through the slot nearest the prongs, over the ribbed centre bar, then down through the outer slot. The female half is the anchor: fold the webbing over the back and stitch it down. Match the webbing to the buckle’s inner width and the strap locks first time.
Most hardware is not difficult. They are just unforgiving about one thing: which side the webbing enters. Get that right and the strap holds under load with no stitching tricks at all. Get it wrong and the buckle still looks correctly assembled, which is why so many people sew a strap, wear it once, and watch it slide loose.
This guide is the version that explains why, so the next clip you pick up takes thirty seconds instead of a search.

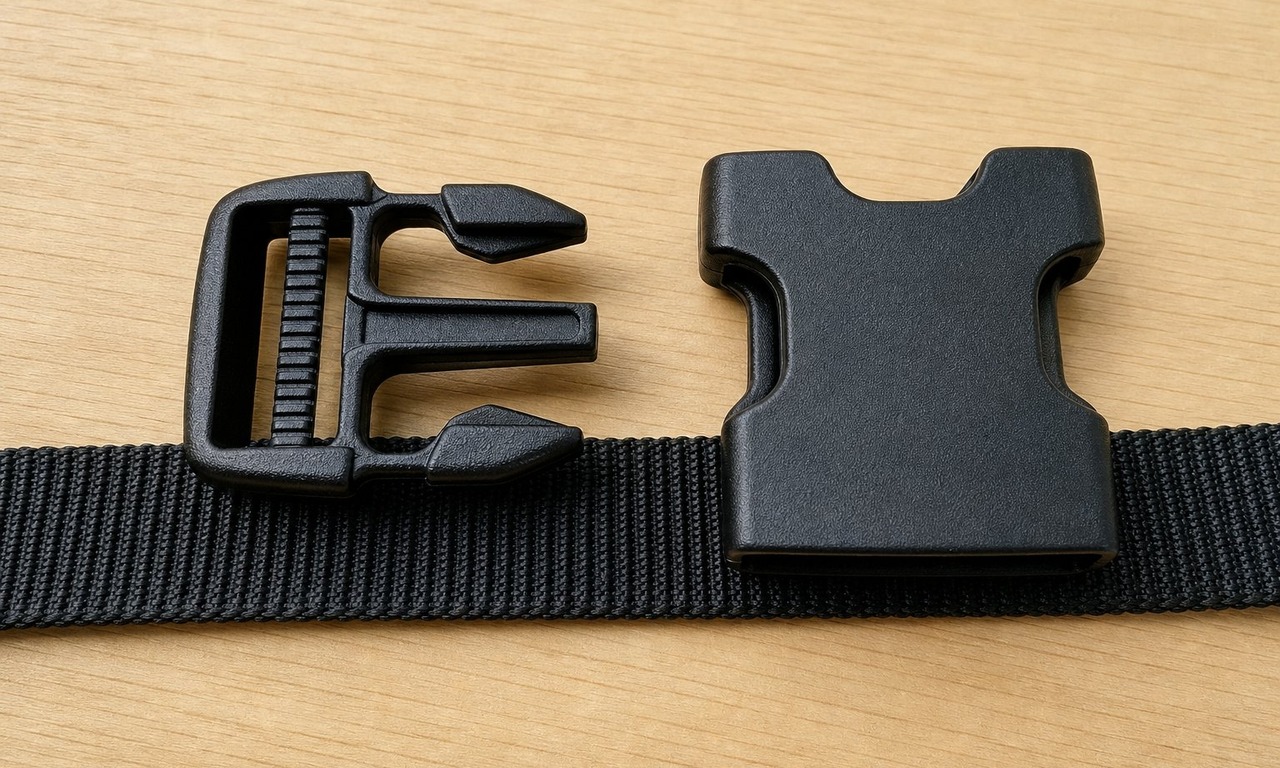

What the Two Halves Actually Do
A standard side release buckle is two moulded halves that click together and release when you squeeze the prongs. Each half carries a different job, and only one of them is meant to slide.
| Part | What it does | Threads the webbing? |
|---|---|---|
| Male half with two prongs | Plugs into the female half and locks with a click | Yes, this is the adjustable half |
| Female half with release buttons | Receives the prongs and holds them | No, it is the fixed anchor |
| Centre bar on the male half | The webbing wraps this bar to create grip | It is the bar you cross |
| Slider or tri-glide | Separate piece that sets the strap length | Yes, it takes the tail |
Which Half Is Adjustable?
On an ordinary bag buckle the male half adjusts and the female half anchors. You can confirm it in two seconds without any instructions: the adjustable half has two slots with a bar between them, and the fixed half has one slot and an open channel for the prongs. Two slots means the webbing passes through twice and can slide. One slot means the webbing folds over and is sewn.
Some clips are double-adjust, with two slots on both halves. The threading method on each half is identical, so a double-adjust clip is simply the same job done twice. If you are replacing a broken clip, buy the same configuration you took off, or one half of your strap will arrive with nowhere to go.

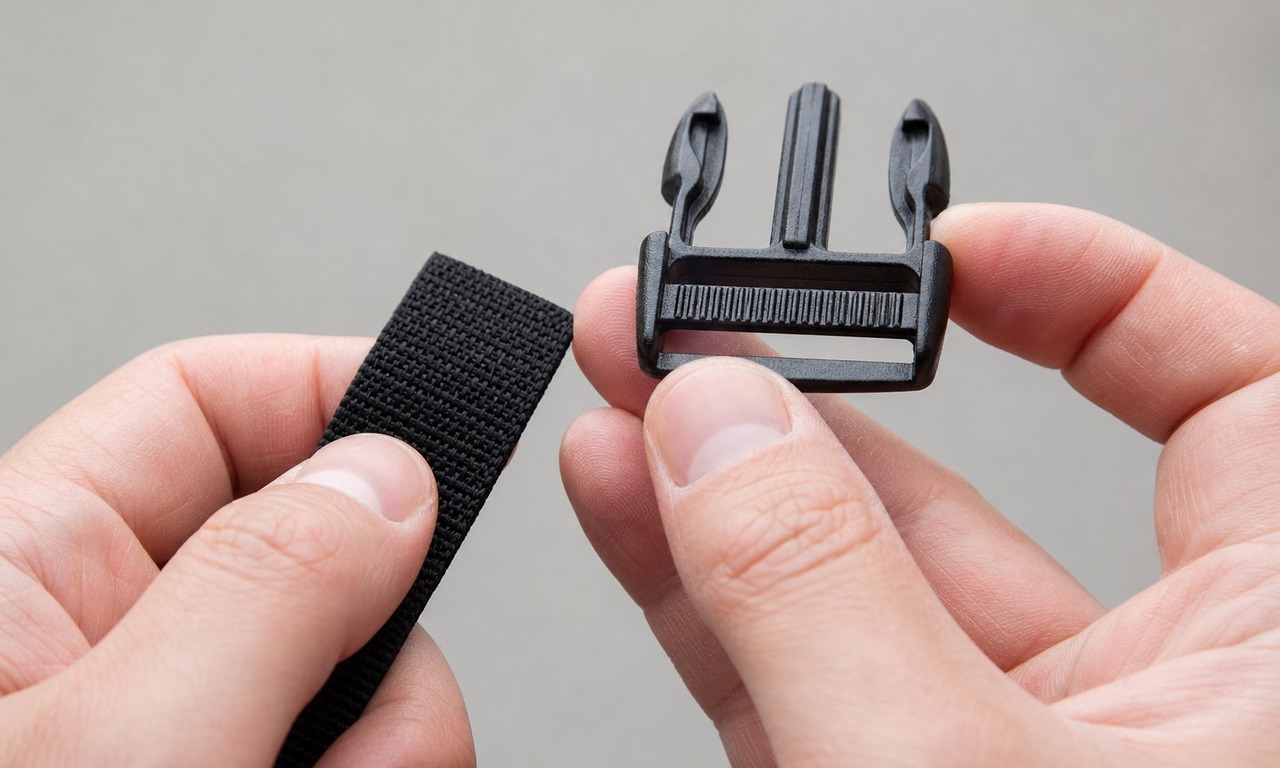

Before you thread anything, hold the clip with the prongs pointing away from your body and the ribbed centre bar facing you. That is the only orientation you need. The webbing goes over the ribbed bar, never under it.
Match the Buckle to the Webbing First
Buckles are sold by inner width, not by the size of the plastic body. The number that matters is the width of the slot the webbing passes through, and that number has to equal the webbing width almost exactly.
| Buckle inner width | Webbing width | Where it is normally used |
|---|---|---|
| 1 inch or 25 mm | 1 inch | Bag straps, dog collars, bum bags, camera straps |
| 1 1/2 inch or 38 mm | 1 1/2 inch | Backpacks, luggage straps, wider shoulder straps |
| 2 inch or 50 mm | 2 inch | Heavy-duty bags, seatbelt-style strapping |
A 1 inch webbing in a 1 1/4 inch buckle is not “close enough”. The webbing cannot fill the slot, so it folds on itself and rides out from under the bar. That is one of the two commonest causes of a slipping strap, and no amount of re-threading fixes it.
The second cause is thickness. Webbing that is too stiff to bend sharply around the centre bar will not seat flat, and the bar grips a fold far less reliably than it grips a flat face. For a first project, choose standard polypropylene webbing about 1 mm thick. It is cheap, it melts cleanly and it bends around the bar without fighting back.
What You Need Before You Start
Nothing here is specialist, and the needle is the one item worth buying properly.
| Item | Specification | Why it is needed |
|---|---|---|
| Webbing | 1 inch, polypropylene or cotton | Must match the buckle’s inner width |
| Thread | Polyester or bonded nylon, size 69 or Tex 70 | Cotton thread rots and snaps under strap load |
| Sewing machine needle | 100/16 or 110/18 | A 80/12 needle bends or breaks in webbing |
| Stitch length | 3 to 3.5 mm | Long enough to span the weave without perforating it |
| Lighter or fray check | Any | Seals a cut polypropylene end in one pass |
| Scissors | Sharp dressmaking shears | Cuts the webbing square before the end is sealed |
| Ruler, marker and clips | Any | Marks the fold line and holds it flat while you sew |
| Tape measure | Soft, 60 inch | Sets the finished strap length before you cut |
If your machine struggles at the hardware, the problem is usually the start, not the thickness. Begin the seam a half inch inside the strap rather than at the very end, and let the feed dogs take the first bite on flat webbing.
How to Thread a Side Release Buckle in 5 Steps
This is the no-slider version, for a strap you set once and leave. It produces a fixed anchor at the female half and an adjustable tail at the male half.
Step 1: Seal the cut end before anything else
Cut the webbing square with sharp scissors, then seal the end immediately.
For polypropylene, pass the cut edge through the edge of a lighter flame for a second or two, until the fibres just begin to melt, then press the warm end flat against a hard surface with your thumb protected by a scrap of card. Do not let a bead form. A hard rounded ball of melted plastic will not pass through a buckle slot, and people who melt their webbing into a bead then spend an hour wondering why the strap will not thread.
For cotton webbing, run a narrow zigzag over the cut edge instead. Cotton does not melt; it burns, and a scorched cotton end frays worse than a clean cut.
Step 2: Find the two slots on the adjustable half
Hold the male half in front of you with the prongs pointing away. The face looking at you has a ribbed bar across its middle, with a slot above it and a slot below it. Those are the only two openings the webbing uses.
The slot nearest the prongs is the one the webbing enters first. The slot at the opposite end, nearest the strap, is the one it leaves by. If you are holding the clip the other way up, so the ribbed bar faces the table, turn it over before you begin.

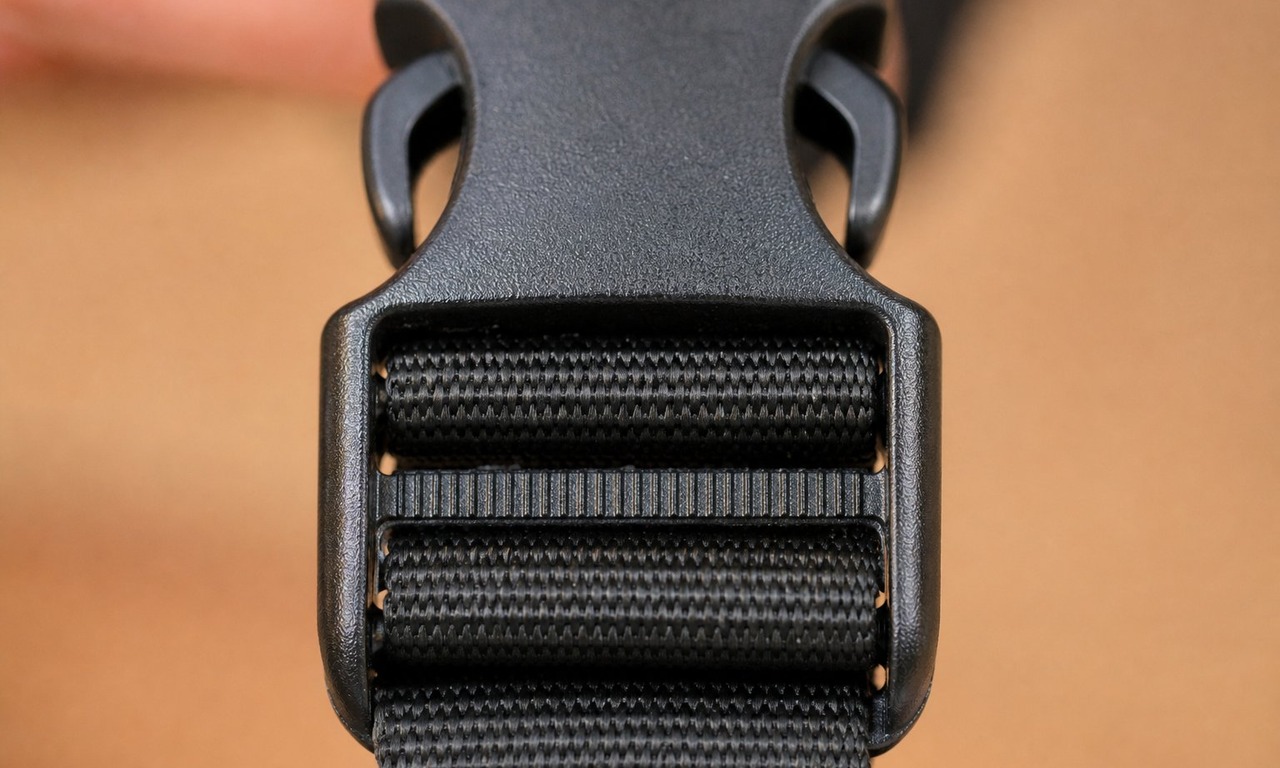

Step 3: Thread up through the inner slot, over the bar, down through the outer slot
Push the sealed end of the webbing up through the slot nearest the prongs, working from the plain face through to the ribbed side. Pull a few inches through, lay it flat across the ribbed centre bar, then take it down through the outer slot on the other side of the bar.
The tail now points back along the strap, which is what you want. Each of those two passes adds friction against the bar, and the two together are what turn a pull on the load side into a tighter grip rather than a slide. The direction matters more than the tightness: the webbing must always cross the bar from the prong end towards the strap end, never the reverse.
Step 4: Pull the tail flat and test the grip
Pull the tail through until the webbing sits flat and untwisted against the bar, then hold the clip in one hand and pull the load side hard.
Two things should happen. The strap should not move at all, and the webbing should not hump up over the bar. If the strap slides, you have threaded it from the ribbed side inwards instead of up through the inner slot. Unthread it and start the pass again from the opposite face; there is no way to correct the grip afterwards by pulling harder.
If the webbing humps rather than lying flat, the webbing is too thick for the bar. A thinner webbing will grip reliably where a thick one will not, even at the same width.
Step 5: Fold the anchor end and stitch it down
Take the other end of the strap, the one with no buckle on it, and pass it through the single slot on the female half. Fold it back on itself by about 2 inches so the raw end lies against the strap, and clip it flat.
Sew a box with an X through the middle, about 1/8 inch in from the fold, and reverse at both ends of every seam. The box stops the strap spreading; the X stops the corners of the box tearing out under load. A single line of stitching across the fold is the weakest version of this joint and the most common reason an anchor end pulls out.
That is the strap finished. The male half adjusts, the female half holds, and the strap should now be impossible to shake loose by pulling.

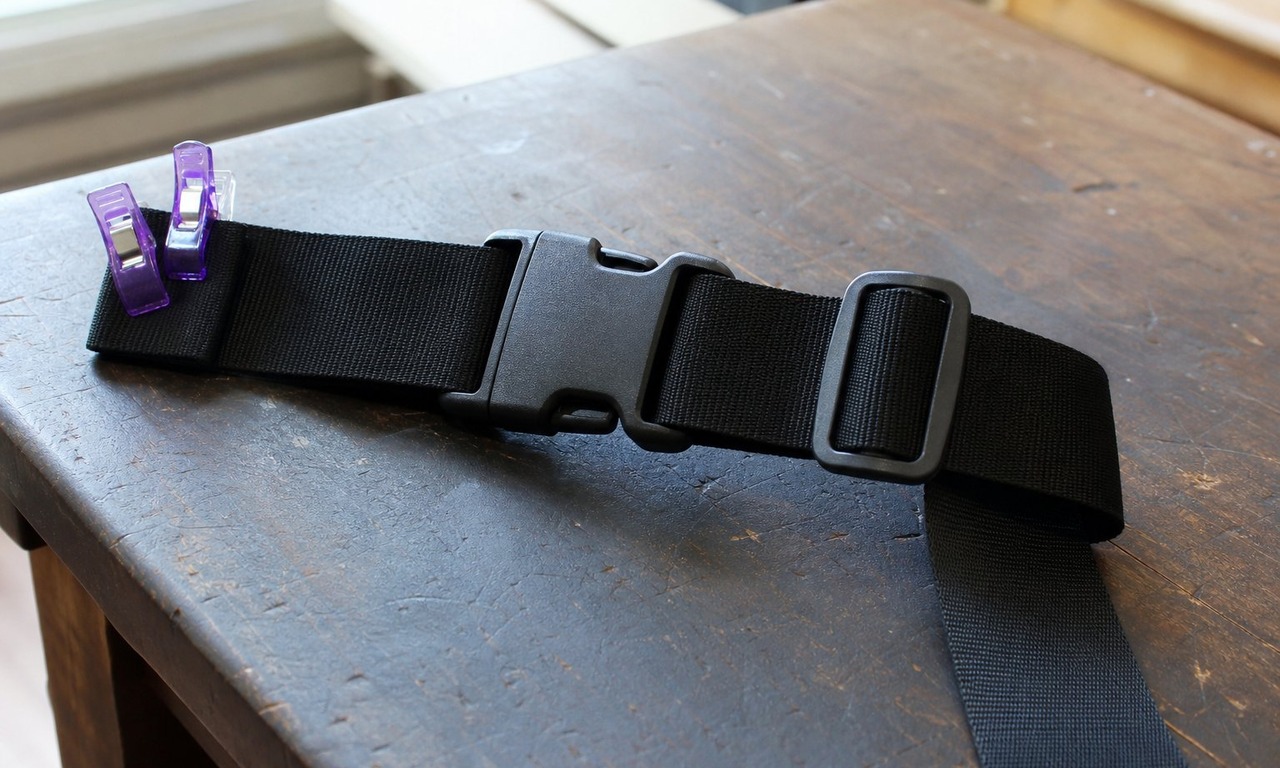

Adding a Slider for an Adjustable Strap
A slider, also called a tri-glide, turns a fixed-length strap into one you can shorten and lengthen every time you put it on. The hardware itself does not change; the slider is added on the long end.
Step 6: Fix the slider to the strap end
Lay the slider on the strap with the flat side down. Pass the end of the webbing down over the middle bar and back up through the other slot, so about 2 inches of tail comes back through. Fold that tail under by half an inch and stitch a box over it. This stitched end is the stopper that stops the strap pulling out of the slider, so it has to be stronger than it looks.
Step 7: Route the free end through the buckle and back to the slider
Bring the long free end up through the inner slot of the male half, over the ribbed bar and down through the outer slot exactly as in Step 3, then take it back through the slider’s remaining slot from the underside.
At this point the strap passes through the clip, through the slider, and out. Pull the tail until the strap is the length you want, and the slider holds that length by friction against the doubled webbing.
Test the finished strap by pulling the load side and the tail in opposite directions at the same time. Nothing should move. If the length creeps while you pull, the tail is entering the slider from the wrong face and needs one more pass through the slot.
The Slip Test: Why Yours Slipped and Mine Did Not
Nearly every slipping buckle was threaded from the ribbed side towards the plain side. The webbing still looks neat, still passes over the bar, and still fails, because the friction is being generated in the direction that lets the tail unwind.
The fix is not tighter threading or more stitches. Turn the clip over, unthread the tail completely and make the first pass from the opposite face. You will feel the difference straight away: the tail pulls down against the bar and settles, instead of riding up over it.

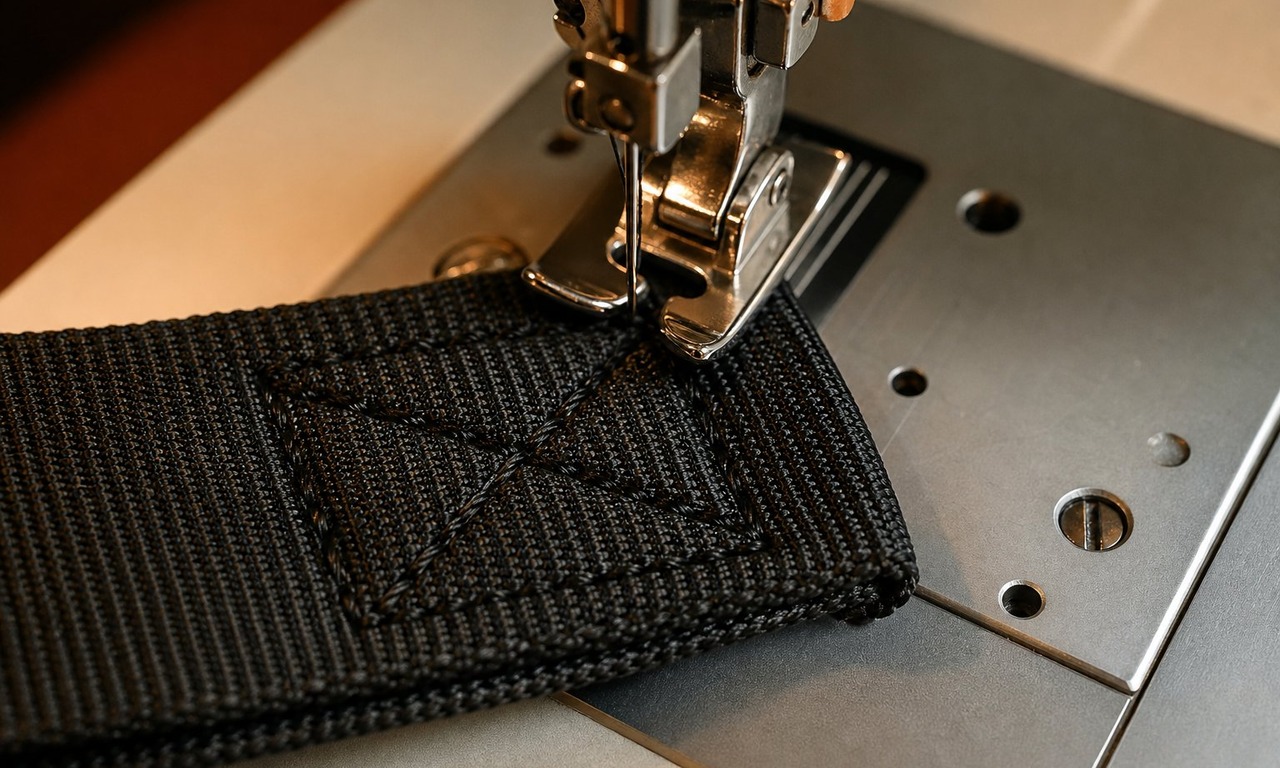

Sewing the Anchor End Properly
The box-X is the joint that holds a whole strap to a bag, so it deserves more than one pass.
Set the machine to a straight stitch at 3 to 3.5 mm, use a 100/16 needle, and fit polyester thread in both the needle and the bobbin. Sew the box first: down one side, across the bottom, up the other side and back across the top, reversing a few stitches at each corner. Then sew the X corner to corner inside the box, again reversing at both ends.
Run the whole shape twice. On a bag strap that will carry real weight, two passes of the box-X is the difference between a repair that lasts and one you redo in a month. When you finish, bury the thread ends between the webbing layers rather than cutting them at the surface, where they will abrade against the bag.
How Much Webbing to Cut
There is no single standard length, because the answer depends on the threading path rather than the project. The calculation is short and you can do it with a tape measure.
- Measure the finished strap length you want, buckle to buckle.
- Add double the fold length at the anchor end, because the webbing doubles back on itself. A 2 inch fold uses 4 inches of webbing.
- Add the tail that returns through the slider — about 2 inches — plus half an inch for the fold, so 2½ inches at that end.
- Add about 3 inches for the length that sits inside the buckle itself.
- Add 2 inches for trimming after the first test fit.
For a strap you intend to wear across the body, check the length against your own body with the bag loaded, not empty. A bag that hangs correctly empty sits an inch or two lower once it has a water bottle in it.
Which Buckle Suits Which Project
| Project | Buckle to buy | What to watch |
|---|---|---|
| Dog collar | 1 inch side release with a slider | Measure the neck and add 4 inches, not 2 |
| Bag shoulder strap | 1 inch buckle plus tri-glide | The slider is what makes it wearable |
| Camera strap | 1 inch webbing, 1 inch buckle | Narrow buckles sit better on the neck |
| Belt | 1 1/2 inch, or a ladder lock instead | A side release releases accidentally on a belt |
| Bum bag or hip pack | Two 1 inch buckles, one for the waist | The waist buckle carries all the load |
What Goes Wrong, and What It Means
| What you see | What it means | The fix |
|---|---|---|
| Strap slides through the buckle | Threaded from the ribbed side inwards | Unthread and make the first pass from the other face |
| Buckle will not click shut | Webbing crowding the prong channel | Trim the end shorter and reseat it flat |
| Strap twists between buckle and slider | One of the two passes is flipped over | Unthread the slider and lay both passes flat |
| Anchor end frays and creeps out | Cut end was never sealed | Reseal it and re-sew the box-X further from the fold |
| Buckle pops open under load | Worn or cracked prongs | Replace it, the plastic has failed |
| Webbing will not enter the slot | Width or thickness mismatch | Change the webbing, not the technique |
Care, Wear and When to Replace
Rinse webbing in fresh water after salt or mud, because dried grit acts like sandpaper inside the slot. Wash by hand with mild soap, dry away from direct heat, and never put a plastic buckle through a tumble dryer; the heat softens the prongs and they lose the spring that holds the click.
Check the prongs before every trip where the strap matters. Look for whitening at the base of the prongs, which is the plastic yielding before it cracks, and for a click that has gone quiet. Replace it at that point. Consumer plastic closures are not load-rated hardware, they are closures, and no amount of good stitching turns one into climbing or fall-arrest equipment.
If You Are Left-Handed
Nothing about the threading changes, but the sewing does. A right-handed sewer feeds the strap so the box-X sits to the left of the needle; a left-handed sewer will find the fold wants to sit to the right and the seam allowance ends up on the opposite side. Set the fold with a clip before you sew rather than holding it with your fingers, and the joint comes out the same either way.
Watch the Threading in Real Time
The first video threads a single-adjust buckle and then shows the double-adjust version, which is the same pass repeated.
The second shows a buckle being threaded, tightened, released and re-threaded, which is the fastest way to see how the grip direction behaves.
Your First Strap
Thread one clip with a scrap of webbing before you touch the good stuff. Ten minutes with an offcut and a lighter teaches you the grip direction better than reading it twice, and a mistake on an offcut costs nothing.
If you are building the strap for a bag, finishing the raw edges of fabric covers the seam ends that show once the strap is attached, and how to use a sewing machine covers the machine settings that get a needle through four layers of webbing without skipping.
Frequently Asked Questions
Which half of a side release buckle is adjustable?
The male half, the one with the two prongs. It has two slots with a centre bar between them, which is what lets the webbing slide. The female half has one slot and is the fixed anchor you stitch down.
Why does my strap keep slipping through the buckle?
Almost always because the webbing was threaded from the ribbed side inwards. Unthread the tail and make the first pass up through the slot nearest the prongs from the plain face, so the tail crosses the centre bar from the prong end towards the strap end.
Can I thread a side release buckle without a slider?
Yes. Without a slider the strap is a fixed length: one half anchors and the other adjusts. Adding a slider lets you change the length each time you wear it, which is worth doing on any bag strap.
What size webbing fits a 1 inch side release buckle?
1 inch webbing, or 25 mm. Buckles are sized by inner width, the width of the slot the webbing passes through, not by the outside of the plastic body. Measure the slot before you buy.
How do I stop webbing from fraying after I cut it?
Melt the cut end of polypropylene or nylon briefly against a flame and press it flat while it is still warm. For cotton webbing, run a narrow zigzag over the edge. Never let a hard bead form, because it will not pass through a buckle slot.
What stitch should I use to sew webbing to a buckle?
A box with an X through the middle, sewn twice, with the seam about 1/8 inch in from the fold and a reverse at every corner. A single straight line across the fold is the weakest joint and the one that fails first.
What needle and thread do I need for 1 inch webbing?
A 100/16 or 110/18 needle and polyester or bonded nylon thread, size 69 or Tex 70, at a stitch length of 3 to 3.5 mm. Cotton thread does not survive the abrasion a strap gets.
Can a side release buckle be used on a belt?
It can, but a side release releases when something catches the prongs, which is not what you want at your waist. A ladder lock or a proper belt buckle is the safer choice for anything load-bearing.
Conclusion
A side release buckle only looks complicated. One half takes the webbing, the ribbed centre bar is what holds it, and the path through the slots decides whether the strap tightens under load or slips the first time you pick the bag up by it. Thread the male half, keep the prongs facing away from you, and test the grip on an offcut before you melt or sew the good webbing.
The slip test is the part worth repeating: load the strap the way the project will load it, because a strap that holds in your hands can still creep under a swinging weight.
Which project is your buckle for — a bag, a dog collar, a pack strap — and did it pass the slip test first time? Tell us in the comments, and if yours crept, say which slot you used, because that is nearly always where the answer is.
About This Guide
Threaded, re-threaded and cut apart again by Mithu, who has sewn every buckle joint described here herself on a domestic machine, including the melted ends that turned into beads and jammed the slot. The slip test in this guide exists because she got the direction wrong first and had to find out why.
The buckle widths, webbing widths and stitch settings follow the standards used for bag hardware and heavy sewing, and every dimension here can be checked with a ruler and a tape measure on your own strap before you cut anything. Where a number appears, it is either a hardware standard or a calculation you can repeat.
