Smocking for Beginners: Pleat, Grid, Stitch

Smocking techniques for beginners start with an uncomfortable truth: the stitching is the easy part. Smocking is embroidery worked across fabric that has already been gathered into even, parallel pleats. The stitches hold the pleats in a repeating pattern, and because each stitch spans only the top of the pleats, the panel keeps a controlled stretch. You are not embroidering flat cloth. You are embroidering a structure you built first.

Nearly every failure in beginner smocking traces back to that structure rather than to the stitching. The pleating is unglamorous and the marking is tedious, so most people rush both and then blame their needle when the panel comes out crooked.

The method below follows English smocking as taught by the Smocking Arts Guild of America and the standard dot-grid system used by commercial pleaters and iron-on transfers, where dots sit ⅜ inch (1 cm) apart.

Why Smock Fabric at All

A smocked panel does three things at once. It draws a wide piece of fabric down to a small, stable measurement. It keeps that measurement elastic, so a child’s yoke grows through a season instead of binding. And it turns the gathering itself into surface design.

The elasticity is the part beginners underestimate. A smocked band is not a stretched-then-released gather; it is a set of pleats that open when worn and close again when relaxed. A cable band holds its pleats firmly, a honeycomb band opens in every direction. That is a design decision, not a detail, and it is why the stitch you choose changes how the finished garment fits.

One condition rules out more projects than beginners expect: smocking adds bulk and holds its own shape. It suits yokes, cuffs, bodices, bands and loose garments. It fights you on close-fitting pieces at the bust, on anything meant to drape, and on bands that must bend around a tight curve.

Smocking is also older than elastic. The word comes from the Old English “smoc”, a loose working garment, and the stitching that gathered a labourer’s smock across the shoulders and chest let the cloth move with the body while still holding its shape. Elastic took over that job; by the nineteenth century the rows had moved from necessity to ornament. What survives from the working version is the constraint that governs everything below: the pleats themselves have to do the stretching.

What You Need

Every stage uses a ⅝ inch (1.5 cm) seam allowance added to the smocked width, and the allowance is not part of the pleated area. Mark it clearly and stop the dot grid one full dot space inside the seamline: the outermost stitch row needs ⅜ inch of flat, unpleated fabric between it and the seam, or the edge pleats collapse when the panel is joined to a garment.

Step 1: Cut the Fabric to the Pleating Ratio

Decide the finished width of the smocked area first, multiply by the ratio for your fabric and method, then add seam allowance.

• Hand pleating, light cotton: 3:1. A 10 inch finished width needs 30 inches of flat fabric.
• Machine pleating: 2.5:1. Machine pleats are set tighter and swallow less fabric.
• Medium and heavier fabric: 2.5:1 is the practical minimum, because the fabric supplies the bulk itself.
• Never go below 2.5:1 on any fabric. Below that the pleats have no depth, the panel loses its elasticity and the pattern closes into a flat band.

Worked once, on a child’s yoke: a finished width of 9 inches in light cotton at 3:1 gives 27 inches, plus 1¼ inches of seam allowance, so cut 28¼ inches. Write the number on the fabric edge before you cut. It is the only measurement you cannot recover later. Cutting wider than 3:1 can still be drawn up smaller; cutting narrower cannot be fixed, because pleats with no depth cannot be stitched back into existence.

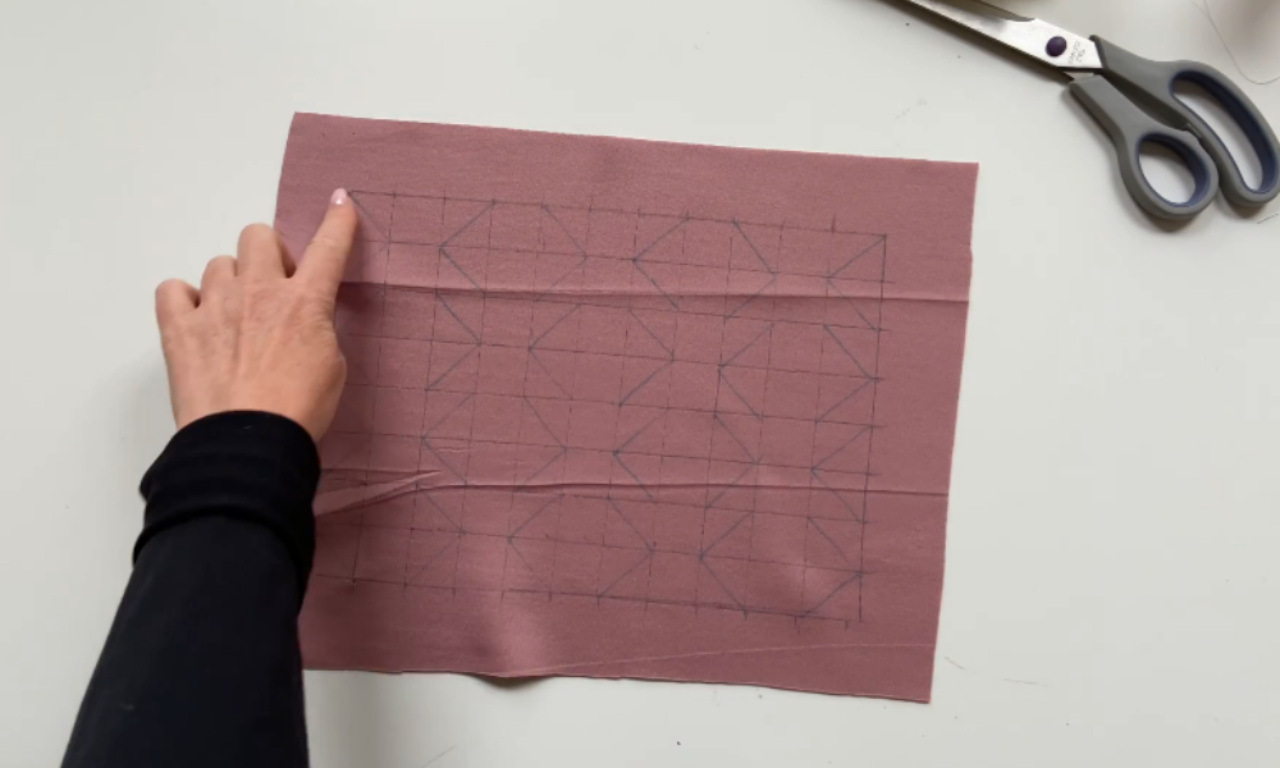

Step 2: Mark the Dot Grid

Space dots ⅜ inch (1 cm) apart across the width and set the rows ⅜ inch apart down the height. For finer cottons and heirloom work drop to ¼ inch (6 mm); for heavy fabric open up to ½ inch (1.3 cm) or the pleats crowd each other.

Mark with a ruler on every row, then check the vertical alignment by eye down one column before you sew anything. With gingham, skip the pen and pick the same intersection in every check, counting from the left edge each time. With iron-on transfers, press the sheet onto the wrong side with a dry iron and no steam, hold for the full time the packet states, then lift a corner to check before peeling. Steam is what fuses the dots permanently, so a dry iron is the difference between a grid that washes out and one that does not. Test one sheet on a scrap of the same fabric first, because transfer brands differ on both temperature and dwell time, and the packet is the authority.

Check yourself: hold the marked fabric at arm’s length and look along one column. The dots should read as a single straight line. If they wobble now, they will wobble in the finished panel.

Step 3: Run the Gathering Rows

Set the machine to its longest straight stitch, around 4 to 5 mm, and loosen the top tension by two numbers (or one notch toward the lowest setting if your dial is unnumbered). Stitch along every dot row, working from the same edge each time, and leave a 4 inch (10 cm) thread tail at both ends of every row.

Do not backstitch. The threads have to slide through the fabric in Step 4, and a locked end cannot slide. If a row crosses a seam allowance, stop and restart on the other side rather than stitching over the fold. Stitching through an allowance traps fabric and shows as a dark line on the finished panel.

Step 4: Draw the Pleats Up to the Finished Width

Pin the first gathering row to your finished-width measurement on a padded surface. Pull the tails of that row from both ends at once until the pleats sit evenly across the pinned width, then work down the remaining rows, pulling each one until it matches the first.

Even the pleats out across the full width with your fingers before you secure anything: the pleats must be parallel, the same depth and evenly spaced, because the stitch pattern reads as a grid and any irregularity shows as a break in it. Tie the tails of each row around a pin in a figure-eight so the pleats cannot relax while you work.

Find the middle before you take a stitch. Count the pleats across the drawn-up width and pin the centre one. Designs are worked outward from that pin so any leftover pleats fall evenly at both ends; start at an edge instead and the whole pattern sits off-centre by half the difference, which cannot be corrected without unpicking every row.

Pull in short, steady strokes of about 2 inches rather than one long drag, and keep the fabric flat on the surface instead of bunching it in your hand. This is where a gathering thread is most likely to snap.

Step 5: Set the First Row of Cable Stitch

Work the first row on the second dot row from the top, not the first. That leaves a clean edge row for the seam and stops the pattern running into your seam allowance. That second row is the holding row, the one row every commercial plate assumes is already there, holding the pleats square while the decorative rows are worked below it. If you have ever seen a plate instruction that starts at “row 2”, this is why.

Come up in the valley between the first two pleats, just below the gathering thread, so the starting tail is buried in a fold rather than sitting on the face of a pleat. Hold the working thread above the needle and take a small horizontal stitch across the pleat, about one third of the way down its depth: deep enough to hold the pleat, shallow enough that it never reaches the row below. Pull through. On the next pleat, hold the thread below the needle before taking the same stitch.

Alternating above and below is what gives cable stitch its rope-like twist. Keeping the thread always on one side gives you outline stitch instead, which is a flat line. Keep the tension firm enough that each pleat stands up and loose enough that the fabric between two pleats lies flat: if the cloth puckers between stitches the thread is too tight, and the finished band will be narrower than you measured.

Step 6: Work the Pattern Rows

Build the pattern downward one dot row at a time and keep each row level with the one above. A row worked one dot out of step is nearly invisible while you are stitching and obvious the moment the panel is finished. If a pleat will not sit in line, ease it back with a point turner or the blunt end of a knitting needle rather than tugging the stitch.

Stack rows of cable for a solid banded look. Space cable rows apart and connect them with wave stitch for a lattice. Wave is covered in Step 7, so read that before you build a connectives row. Honeycomb doubles each pair of pleats and hides a diagonal on the back, so a mistake costs twice the unpicking; learn it after the first three.

Starting and finishing a thread are not the same job. Start by knotting the tail and burying the knot in the valley between two pleats where it cannot show. Finish by running the thread under three or four stitches on the back and leaving it with no knot at all, because a finishing knot sits at the edge of the panel where the seam will not cover it.

Step 7: Finish With a Wave Row

End the pattern on the last dot row with wave stitch. Wave is more elastic than cable or outline because each stitch travels diagonally for part of its length instead of gripping the pleat straight across; only honeycomb is more elastic. That lets the bottom edge open slightly under movement instead of pulling tight.

Work one step per pleat: down one row, across one pleat, up one row, across the next. Two rows worked in mirror directions give the diamond lattice seen on traditional yokes. If you want a firm, non-stretching bottom edge instead, finish with a straight cable row and accept that the border will feel stiffer.

Step 8: Block and Press the Panel

Press on a padded surface, wrong side up, over steam, without pressing the iron down. Hold the iron just above the pleats and let the steam set them, then leave the panel flat until it is completely dry.

Leave the gathering threads in. They are the only thing holding the width you measured, and pulling them now lets the panel relax back toward its flat length before it is sewn in. Cut them at the seam once the panel is joined and draw them out one row at a time; a thread that resists is trapped under a stitch, so find the stitch rather than pulling harder.

Do not press the right side and do not use a heavy pressing cloth. Both flatten the relief the whole technique exists to create, and once the pleats are pressed flat they do not come back.

Check yourself: press one corner first and compare it with an unpressed area. If you cannot see the difference in relief, the iron is too close or too heavy.

The Five Beginner Stitches

Every stitch below is worked across the pleats with the same small horizontal movement. What changes is where the thread sits relative to the needle and how far the stitch travels between pleats, which is what determines elasticity, and elasticity is what determines where on a garment you can use it.

Choose the stitch by where it will sit, not by how it looks on a plate. A cable band on a child’s cuff will not grow with the child, while the same band in honeycomb will. Honeycomb at a firm edge drops out of shape, so a cable row above and below a honeycomb panel is the usual pairing. Read the elasticity column as a construction instruction, not a difficulty chart.

If you only learn two stitches, learn cable and wave. Cable gives you every straight line and every border; wave gives you every angled connective and every elastic edge. Two further stitches are worth knowing once these five are solid: wheat stitch, which combines outline and stem into a vertical grain, and diamond stitch, which closes the open diagonals of a trellis into solid diamonds.

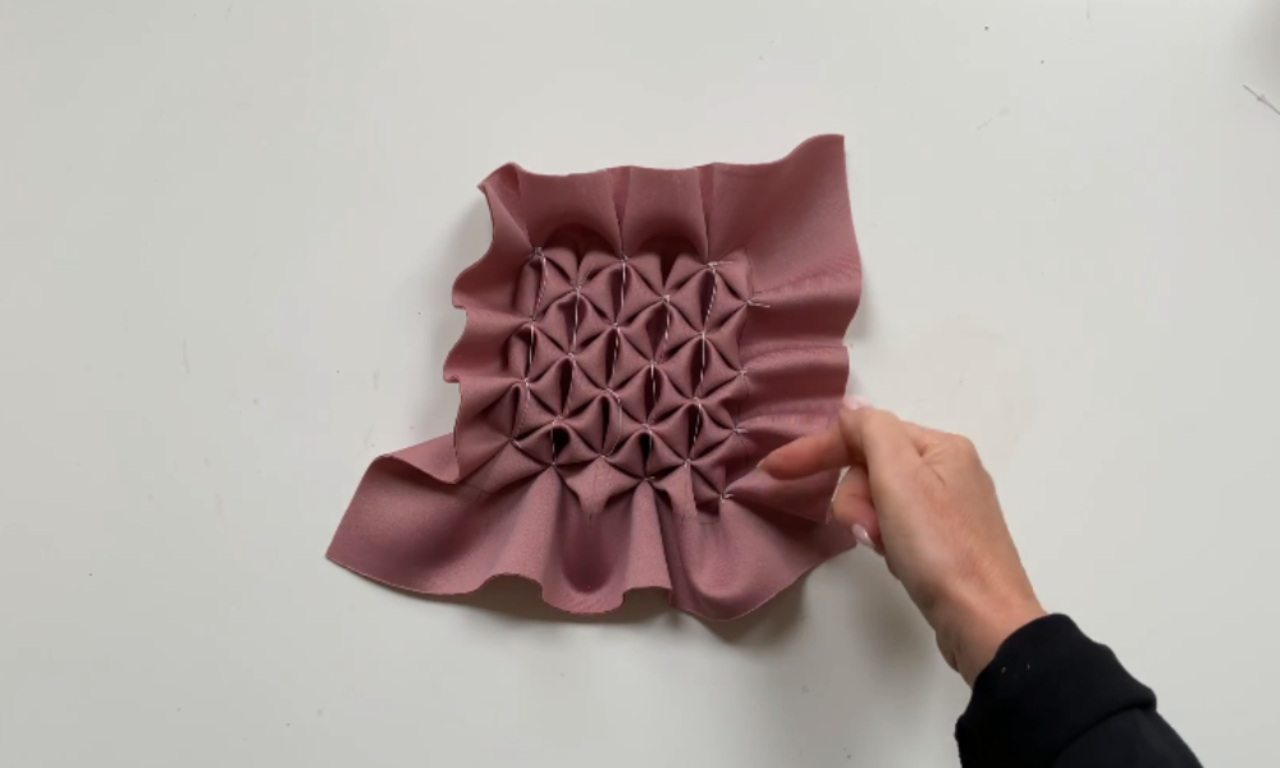

Working Honeycomb Stitch

Honeycomb is cable stitch worked on pairs of pleats, with the pairs staggered from one dot row to the next. The diagonal that closes each cell travels on the back of the work, which is why the front reads as hexagonal cells with open fabric at the centre.

On the top row, cable pleats 1 and 2 together, leave 3 and 4 ungathered, then cable 5 and 6 and leave 7 and 8. Drop one dot row. On that lower row, cable the pairs you skipped last time, 3 and 4, then 7 and 8, and skip the pairs you have just worked. Repeat that alternation down the panel, and keep every cable to exactly two pleats.

Two details decide whether it works. A third pleat pulled into any group turns the cable into a short wave and the cell disappears. And the thread must travel diagonally across the back between rows rather than being carried straight down inside the fold; a straight carry is invisible on the front but it closes the cell from behind.

Check yourself: after two rows, hold the panel up to a window. You should see daylight through the centre of each cell, arranged in a honeycomb. If the centres are opaque, the cables are gripping too many pleats, and the fix is to unpick back to the last clean row rather than to loosen the tension. Work honeycomb at a slightly lower tension than cable. Pulled tight, it behaves like a cable row and you lose the reason for doing it.

Machine Smocking: When It Beats Hand Work

Machine smocking shortens Stage 3 from an hour to a few minutes and makes the pleats more consistent than hand gathering can achieve, because a pleating machine sets every pleat at the same depth. It does not do Stages 5 to 7 for you: the decorative stitching is still hand work.

Cut for 2.5:1, not 3:1. Machine pleats are set tighter and finer, so the same finished width needs less flat fabric: a 10 inch finished band needs 25 inches instead of 30. Cut to 3:1 and pleat by machine and the extra fullness has nowhere to go, so the band turns thick and stiff.

There are two routes. A pleating machine takes the fabric through grooved rollers on needles and produces evenly spaced pleats across the full width in one pass; you then hand-stitch as in Stages 5 to 7. Set the machine before the first pass: the gauge that matches your dot spacing (a 5-gauge roller set for a ⅜ inch grid), a fresh sharp needle for each project, and no backstitch at either end of the pass. The gathering threads have to be pulled out, so a locked end is a pleat you cannot release. Alternatively, buy pre-pleated fabric or pre-pleated ribbon, which removes Stages 2 to 4 entirely and is the cheapest way to try the technique before committing to equipment. Pre-pleated fabric arrives at a fixed ratio, usually 2.5:1, so measure the flat width before planning a project around it.

One caution that matters more than the footage: the demonstrator works to her own dot grid, her own fabric ratio and her own row count. Do not carry her numbers onto your fabric. Your ratio was fixed in Step 1 and your row count in Step 2, and those two decisions drive everything that follows. Copy the hand movement and ignore the arithmetic.

Attaching a Smocked Panel to a Garment

There are two ways a smocked piece joins a garment, and choosing the wrong one is the most common structural mistake after a bad pleating ratio.

• Self-enclosed smocking forms the whole piece: a band, a cuff, a bishop sleeve, a whole bodice. The smocked panel is the garment at that point, so its edges are the seam edges. Join it directly to the next piece with a ⅝ inch seam, and finish that seam before the panel is drawn up, because you cannot get a serger into a pleated edge afterwards. Stitch the seam, then draw up.
• Inset smocking is a panel set into a larger garment, typically a yoke into a bodice or a smocked rectangle into a skirt. Finish and block the panel first, then fit the garment to it. Commercial plates use their own vocabulary for this: a plate marked “straight variation” is written for an inset, and one marked “bishop variation” is written for a piece that gathers a skirt. Trim the panel allowance to ¼ inch (6 mm) and grade the garment allowance to ⅝ inch, so the bulk sits on the garment side and does not ridge through the smocking.

Either way, staystitch the pleated edge before you sew it. Pleats that are not held will shift under the presser foot and the panel will go in skewed by a few pleats, invisible in the seam, obvious in the pattern.

Cutting a Smocked Panel to a Pattern Shape

Stages 1 to 8 produce a rectangular band of pleated, stitched fabric. Most garments need a shaped piece: a yoke with a curved front neckline, a bodice panel with a sloping armhole, and this is where a good panel is most often ruined.

The sequence that works is smock a rectangle, block it, then cut the shape. Not the other way round. Pleating pulls the fabric up along its length and compresses the grain, so a shaped edge drawn before pleating will not land where you drew it afterwards: a curve becomes a series of steps and a sloping armhole shifts by as much as the pleating takes up. You cannot pleat a curved edge accurately, because the gathering rows have to run straight across the full width to keep the pleats parallel.

Blocking to shape is the bridge, and it is not the same operation as the Step 8 press. Step 8 sets the pleats with the iron hovering. This step shapes them with real contact, using freezer paper as a shield so no bare soleplate touches exposed pleats.

Draw or trace the pattern piece onto freezer paper with the seam allowances included. Lay the finished panel face down on a padded surface and mist it lightly with water until damp but not wet. Iron the freezer paper shiny side down onto the back of the panel so the plastic grips the pleats, then press over it with steam, stretching and easing the panel until it fills the paper shape. Leave it flat until bone dry. The pleats hold the shape they dried in.

Only then cut, through paper and fabric together. The paper stops the pleats shifting under the scissors, which is the whole reason for the method.

Two cautions. Never cut into the pleated field itself: every cut edge must fall on the seam allowance or on fabric you are trimming away, because a pleat sliced open will unravel into the row above it. Release one pleat at each end and tie off the freed threads before you cut, so the allowance you are about to cut contains flat fabric rather than a pleat sliced down its middle. And if the piece is a plain rectangle, as a cuff or waistband is, skip the blocking and cut square.

Check yourself: lay the dry, blocked panel over the paper pattern piece and look along the edge. If the pleats have crept, the paper edge will sit proud in one place and fall short in another. Re-mist and re-block rather than trimming to fit.

Smocking Problems and Fixes

Almost everything that goes wrong in a first panel is visible before the first stitch of Stage 5. Diagnose by when the defect was set, not when it appeared.

Which Fabrics Suit Smocking

Light and medium cottons are the mainstream choice for a reason: they take a crease, hold a pleat and press cleanly. Batiste, lawn, voile, cotton poplin and cotton-blend shirting all behave. Gingham earns its place for beginners because it removes the marking step entirely, and the check tells you immediately whether your pleats are even.

Two categories to avoid on a first project. Slippery fabrics such as silks, satins and linings let the pleats migrate between Stages 4 and 6 and will not hold a line under the needle. Loose weaves and knits lose the pleat into the weave; jersey in particular will shirr rather than smock, and the result is a gathered tube with no pattern definition. If you want to work with those, stabilise the pleated area with a strip of fusible interfacing before pleating and expect a wider ratio than 3:1. Knits fail for a mechanical reason worth knowing: the fibre recovers, so the gathered pleats pull themselves shut between the rows and the stitches sit on top of a pleat that keeps changing width. That is also why a knit smocked band relaxes wider than you measured it.

If the vocabulary is still new, our beginner’s guide to smocking covers it, and how to shirr fabric with elastic explains the elastic-thread method that is often confused with smocking.

The Numbers in One Place

Four variables move together. Read across the row for your fabric and you have every number this guide uses.

Smocking Plates and What Comes Next

A plate is the printed pattern for the stitching, laid over a dot grid, and it is how designs are shared between smockers. Every plate states the number of pleats and rows it needs, and whether it is written for a straight piece or a bishop, so the first thing to do with a new plate is read those two numbers and check them against your fabric before cutting.

That check is a multiplication. A plate needing 96 pleats consumes 96 times the dot spacing: at ⅜ inch that is 36 inches of flat fabric. A 20 inch finished panel at 3:1 is cut from 60 inches of flat fabric, which yields 160 pleat positions, so the plate fits with 64 pleats to spare, 32 to centre on each side. Cut the same plate into a 10 inch finished panel and you have only 30 inches of fabric, or 80 pleat positions, which is 16 short and cannot be worked.

Picture smocking stacks cables row on row until they form a solid shape. It asks more of the foundation than geometric work, because any gap between pleats shows as background through the design. Back-smocking is the row of stitching worked on the reverse to hold the open areas of a picture design flat; it is invisible from the front and stops the pleats bowing apart under the filled parts.

Other Smocking Traditions

Everything above is English smocking: pleat the fabric, then embroider across the pleats. It is the dominant method in Britain and North America and it is not the only one. North American, or Canadian, smocking skips the pleater and works a grid of dots directly on flat fabric, drawing them together with knots to make its own texture. Italian smocking works on the reverse. Counterchange smocking uses two contrasting fabrics in bands so the pattern appears by shifting colour as the pleats close.

The stitches and ratios here do not transfer to those methods, and a tutorial for one of them will not make sense against this grid.

Frequently Asked Questions

Conclusion

Smocking techniques for beginners come down to four numbers and one order. Cut 3:1 for hand pleating or 2.5:1 for machine, mark the grid at ⅜ inch with a ruler on every row, draw every pleat up to the finished width before the first stitch, and finish the bottom edge with wave so it can move. Then block with steam and leave the gathering threads in until the panel is sewn in.

Get the grid right and the stitching really is the easy part, which is the reverse of how it feels on the first attempt.

Tell me which, and I will tell you the pleats to cut and the stitch to start with. What are you smocking first: a child’s yoke, a cuff, or a band you can practise on without committing a garment to it?

About This Guide

Written and made by Mithu, who has pleated and smocked panels in lawn, poplin and gingham, who worked the three ratios and the plate arithmetic through on her own fabrics before writing any of them down, who cut her first panel at just over 2:1 and learned the hard way that insufficient width cannot be corrected, and who now marks every single row with a ruler because the one row she skipped is the row you can see in the finished panel.

Every figure here is traceable. The stitch definitions follow the Smocking Arts Guild of America, and the pleating ratios follow both hand and machine pleating suppliers. Published ratios do differ, from 2:1 on heavy fabric to 5:1 on heirloom lawn, so this guide uses 3:1 for hand work and 2.5:1 for machine work and states the tolerance around each. Dot spacing varies between sources in the same way, from ¼ inch for fine cotton to 1 inch for a coarse hand-pricked grid; the ⅜ inch used here is what most commercial dot paper is printed at and most pleater rollers are set to. The ⅝ inch seam allowance, the ⅜ inch flat margin at the edge and the ¼ inch panel allowance on an inset are the figures this method was worked at.
