Have you ever wanted to make a quilt that looks like it’s jumping off the fabric? 3D hollow cube quilt blocks create amazing optical illusions that make your quilts look three-dimensional. These special blocks use clever fabric placement to trick the eye into seeing empty rooms or floating cubes. Today, I’ll show you exactly how to create these stunning blocks, from cutting your fabric to piecing everything together.
The best part? No need for complicated methods—just straightforward triangle piecing and thoughtful color selection will do the trick. Let’s dive into the wonderful world of dimensional quilting!
What Makes These Blocks Look 3D?
The secret to 3D hollow cube quilt blocks is all about color and placement. Every cube is made with three fabrics from the same color group—one light, one medium, and one dark. When placed correctly, these create the illusion of depth.
Think of each cube as an empty room you’re standing in. The light fabric forms the floor beneath your feet and the ceiling frame above. The medium fabric creates one wall and its opposite frame. The dark fabric makes the other wall and its matching frame.
This careful arrangement tricks your brain into seeing depth where there is none. It’s pure quilting magic!
Materials You’ll Need
Before we start cutting and sewing, gather these essential supplies:
Fabric in three shades (light, medium, and dark) for each cube you want to make. For best results, choose colors in the same family with clear contrast between shades.

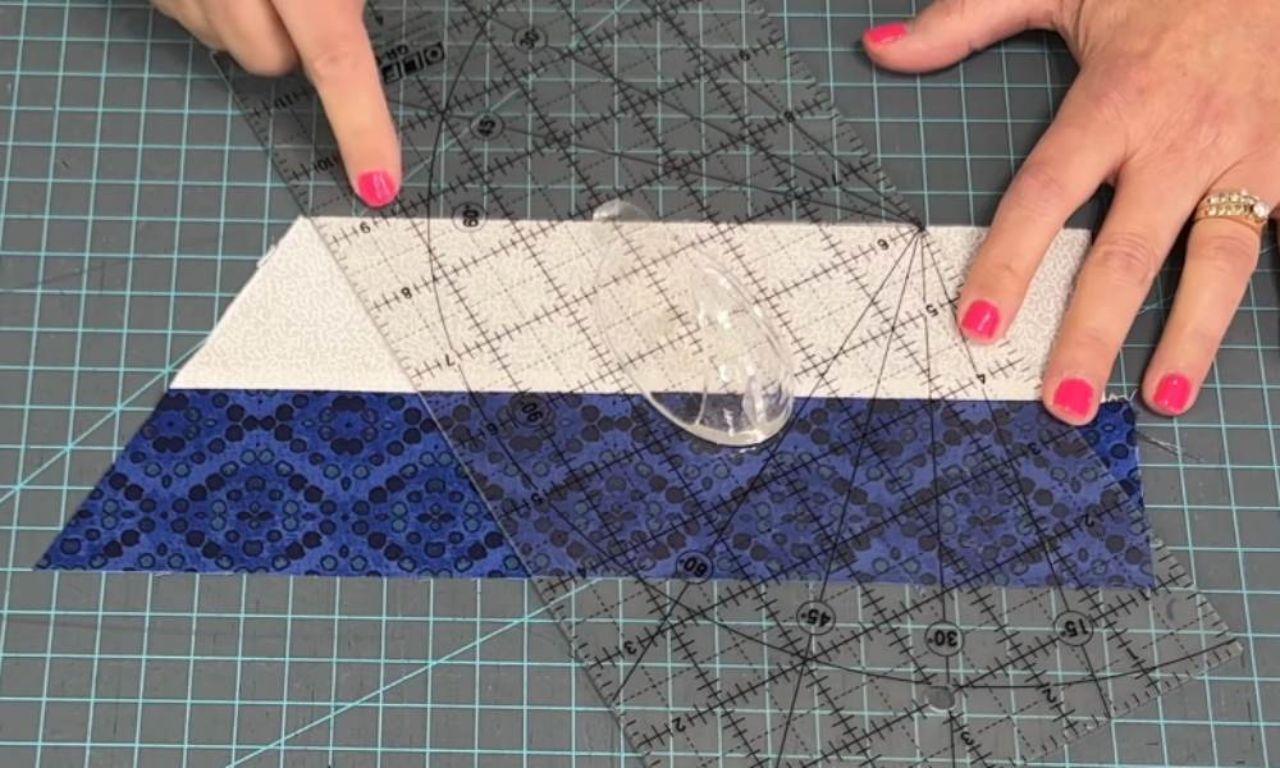

An equilateral triangle ruler (also called a 60-degree ruler or pyramid ruler)
Essential quilting tools such as a rotary cutter, a cutting mat, sewing thread, pins, and a sewing machine
Iron for pressing seams
For each cube, you’ll need:
- Two triangles of each color (light, medium, dark)
- Four 1-inch by 6-inch strips for each triangle (for frames)
If you’re using 10-inch squares of fabric, you’ll get enough pieces for two complete cubes from each set of three colors.
Fabric Requirements for 3D Hollow Cube Blocks
| Fabric Type | For 1 Cube | For 4 Cubes | For 8 Cubes |
|---|---|---|---|
| Light | 10″ square | Fat quarter | 1/2 yard |
| Medium | 10″ square | Fat quarter | 1/2 yard |
| Dark | 10″ square | Fat quarter | 1/2 yard |
| Background | 1/8 yard | 1/2 yard | 1 yard |
Step-by-Step Cutting Instructions
Begin by layering your three fabric pieces—light, medium, and dark—on top of one another. This clever trick lets you cut all three at once!
From this stack, cut one 3-inch strip across the width. This will become your triangles. Then cut a 6-inch strip which will become your frames.
Using your equilateral triangle ruler on the 3-inch strip, cut two triangles from each color. Flip your ruler and cut two more. You’ll have six triangles total—two of each color.
From the 6-inch strip, cut 1-inch wide strips. You’ll need four frame pieces for each triangle.
Creating the Framed Triangles
Now comes the fun part! For each triangle, you’ll add two frame pieces. This creates the 3D effect.
Place one frame piece along one side of a triangle, centering it and making sure the lengthwise grain runs parallel to the edge. Sew with a 1/4 inch seam. Iron the seam flat—either open or to one side, depending on your preference.
Use your triangle ruler to trim the excess frame fabric flush with the triangle edge. This gives you a clean line.
Repeat with a second frame on another side of the triangle. Press and trim again.
When finished with all six triangles, each should measure 4 inches in height when you place your ruler on them.
Arranging for the 3D Effect
Arranging the pieces correctly is crucial for the optical illusion to work. Start by looking at the frame colors.
Find the two triangles with light-colored frames—these will be your ceiling and floor. The one with dark fabric should go on the left, and the medium fabric triangle on the right.
Next, place the medium-framed triangles. The dark triangle goes in the middle left position, and the light triangle goes in the bottom right.
Finally, position the dark-framed triangles, with the medium triangle in the middle right and the light triangle at the bottom left.
When arranged correctly, you’ll see that:
- Light frames are opposite light triangle sections
- Medium frames are opposite medium triangle sections
- Dark frames are opposite dark triangle sections
This careful alignment creates the perfect 3D effect!
Piecing the Cube Together
Once arranged correctly, piece the triangles in two halves—the left three triangles together and the right three triangles together.
Start at the top, flipping pieces right sides together. Match the points carefully and stitch with a 1/4 inch seam. Finger press and add the next piece. When you’ve sewn three pieces together, press with an iron.
Trim any “nubs” or excess fabric at the edges to create clean, straight lines for easier piecing later.
For now, put the two halves to the side—wait before sewing them together! This makes it easier to add setting triangles and piece multiple cubes together.
Adding Setting Triangles
To complete a quilt with these blocks, you’ll need setting triangles. Cut 4-inch strips of background fabric and use your triangle ruler to create triangles the same size as your finished block triangles.
For a single block, add seven setting triangles around the left half of the cube and seven around the right half. This creates straight edges for joining rows together.
Sew the triangles to each half, then join the rows together to complete your block.
Creating Multiple Cube Patterns
Want to make more complex patterns? You can stack cubes by placing the left half of one cube on top of the right half of another. Pay attention to the direction of light and dark fabrics to maintain the 3D effect.
Fill in any gaps with setting triangles, always making sure you have the same number of triangles in each row for easy piecing.
Final Tips for Perfect 3D Cubes
Keep a picture of your cube arrangement nearby as you work. It’s easy to get confused about which piece goes where.
Use pins at the top of your pieces to help you remember which end is up.
The 3D effect works best when you have good contrast between your light, medium, and dark fabrics.
Cut off any “nubs” or points that stick out—they’ll get in the way of clean piecing.
Always count your triangles in each row to make sure everything will fit together properly.
Frequently Asked Questions About Dimensional Quilt Blocks
What is the easiest quilt block for beginners?
The Nine Patch block is perfect for beginners. It uses simple squares arranged in a 3×3 grid. You only need straight-line sewing. For dimensional effects, start with a basic Nine Patch and add one folded corner. This gives you practice with both traditional and 3D techniques.
What is the most widely recognized quilt pattern in history?
The Log Cabin pattern holds this honor. It’s beloved for its versatility and symbolic meaning. The center square traditionally represents home. When adding dimensional elements to a Log Cabin block, try incorporating a folded ruffle in the center square. This adds beautiful texture while maintaining the pattern’s classic appeal.
What is a quilt block pattern?
A quilt block pattern is a single unit design that repeats throughout a quilt. Think of it as a puzzle piece. Each block can be simple or complex. With dimensional quilting, these patterns gain extra depth through folding, pleating, or ruffling techniques. Basic blocks become more interesting with 3D elements.
What is a good pattern for a beginner quilter?
The Rail Fence pattern works great for beginners. It uses simple strips sewn together. No complex angles or matching points needed. For those trying dimensional quilting, the Rail Fence pattern provides perfect spaces to add small folded elements between the strips.
What size quilt should a beginner make?
Start with a lap quilt measuring about 50″ x 65″. This size is manageable for new quilters. It’s not too small or too large. You can practice dimensional techniques without feeling overwhelmed. A lap quilt typically needs about 20-25 blocks, giving you plenty of practice without being too challenging.
Ready to Create Your Own 3D Quilt?
Now that you know how to make 3D hollow cube quilt blocks, it’s time to try them yourself! Start with just one block to practice the technique. Once you feel comfortable, you can create stunning quilts with multiple cubes for even more impressive optical illusions.
Remember, the key to success is careful fabric selection and precise piecing. Take your time with each step, and you’ll soon be creating dimensional quilt blocks that amaze everyone who sees them.
Ready to start your 3D quilting journey? Gather your fabrics, grab your triangle ruler, and begin creating optical illusion magic that will make your quilts truly stand out!
