Common Janome Bobbin Problems: 9 Checks in the Right Order

The bobbin gets blamed for nearly everything that goes wrong underneath the needle plate, and on a Janome that blame is usually misplaced. The part is a passive spool. It has no motor, no spring you can break by looking at it, and nothing that drifts out of adjustment on its own. What fails is the path the thread takes to reach it and the path it takes to leave.

This guide puts the checks in the order that finds the fault fastest, and it flags the one piece of advice nearly every other Janome article gives that simply does not apply to these machines.

Four Things That Are Never the Bobbin

Before you take anything apart, rule out the four causes that sit above the needle plate. Between them they account for most of the failures blamed on the lower half of the machine.

1. The top thread is not seated in the tension discs. If the presser foot was down when you threaded, the discs were closed and the thread slid past them instead of into them. The machine then has no grip on the top thread and drags it down into a bird’s nest.
2. The needle is dull, bent or the wrong type. A bent needle misses the hook by a fraction of a millimetre and the loop is never caught. It looks like a timing fault and costs a couple of dollars to fix.
3. The bobbin-winding spindle is still engaged. On Janome models with a slide-out spindle, leaving it pushed to the right stops the needle bar picking up the lower thread.
4. The feed dogs are dropped. The lever at the back of the free arm drops them for darning and free-motion work, and it stays dropped until you move it back.

Which Janome Bobbin System You Have

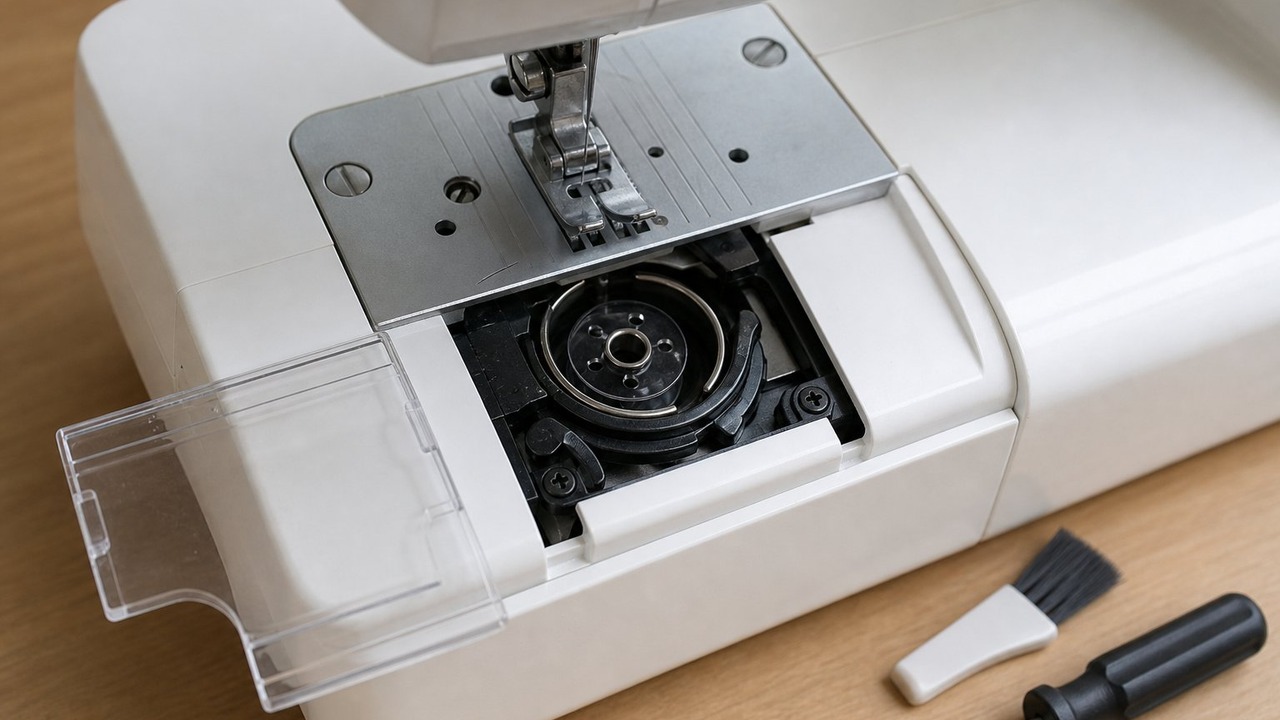

This matters more than any other single fact on the page, because the two systems need different checks. On a drop-in machine the bobbin sits face-up in a race under a clear cover plate and there is no case to remove. On a front-load machine the bobbin lives inside a metal case with a small tension screw, and that whole case comes out in your hand.

If you are not sure, look for a bobbin case you can hold. Drop-in machines generally do not give you one; the bobbin drops straight into the race and a flat spring in the cover plate supplies the drag. Front-load machines hand you a metal case every time you change a bobbin.

Why the Drop Test Does Not Work on a Janome

Open almost any article about lower-thread tension and you will be told to hold the case by its thread and let it dangle. It should drop an inch or two and then stop. If it plummets, the tension is loose; if it will not move, the tension is tight.

That test needs a removable case. A drop-in Janome does not have one. There is nothing to dangle, nothing to hold by the thread, and no screw to turn on the part you might be tempted to turn it on. The lower tension on these machines is set at the factory by a flat spring built into the throat-plate cover, and for normal sewing it should never need touching.

So when a drop-in Janome sews a bad stitch, the correction lives on the top side of the fabric: re-thread, fit a fresh needle, confirm the bobbin is seated and its thread is routed under the spring on the cover, then move the top dial in small steps. Reaching for a screwdriver on the lower half of a drop-in machine is how a small fault becomes a service booking.

The Bobbin Itself: Class 15, 15J and the Letter J

The company ships its own plastic bobbin with a J moulded onto the centre post, and describes it as a basic Class 15 bobbin. The J stands for Janome; it is not a separate size.

Class 15 and Class 15J are the same physical size and interchange freely. The incompatibility that actually bites is Class 15 against Class 66, and plastic against metal.

The metal point is specific to these machines. Janome’s drop-in race uses a small magnet to hold the bobbin holder in place, which is why the manufacturer specifies plastic bobbins only. In practice a metal one rarely gets far enough to cause trouble because it does not seat cleanly in the first place, so treat the bobbin material as a late check rather than a first suspect.

Third-party plastic ones are a real risk, though. A part that is a fraction wider, smaller or slightly curved drags unevenly no matter what class label is on the packet. Match the specification in your manual for your exact model rather than buying on looks.

The Kit These Checks Need

Everything below fits in a small tin, and none of it is expensive.

A word on the oil, because it is where machines get damaged. “Sewing machine oil” means the clear, light mineral oil sold for the purpose. It does not mean a spray lubricant, a silicone spray, WD-40 or 3-in-1, all of which leave a residue that attracts lint and eventually gums the mechanism.

The Nine Checks, in Order

Work down this list. Most faults are solved before the fourth step, and the order is deliberately cheapest and most likely first.

Step 1: Re-thread the whole machine with the presser foot up

Take every thread off, including the bobbin. Raise the presser foot lever, then re-thread following each guide in sequence with the foot still up. Drop the bobbin in and make sure the thread runs through the slot and under the spring on the cover plate.

Pull both tails back behind the foot, about 4 inches, before you start the first seam. Thread tails shorter than that get pulled straight out of the needle when the machine begins to sew.

Step 2: Fit a fresh needle

A Janome takes the standard 130/705 H flat-shank system, the same as Singer, Brother and Bernina, so Schmetz, Organ and Klasse needles all fit. The flat side of the shank faces the back, and the shank goes all the way up into the clamp before you tighten the screw.

Change it at the start of a project and after roughly 8 hours of sewing. There is no official hour count from Janome, and there does not need to be: a needle costs less than a coffee and a worn one causes faults that read as mechanical.

Step 3: Confirm the bobbin class and its direction

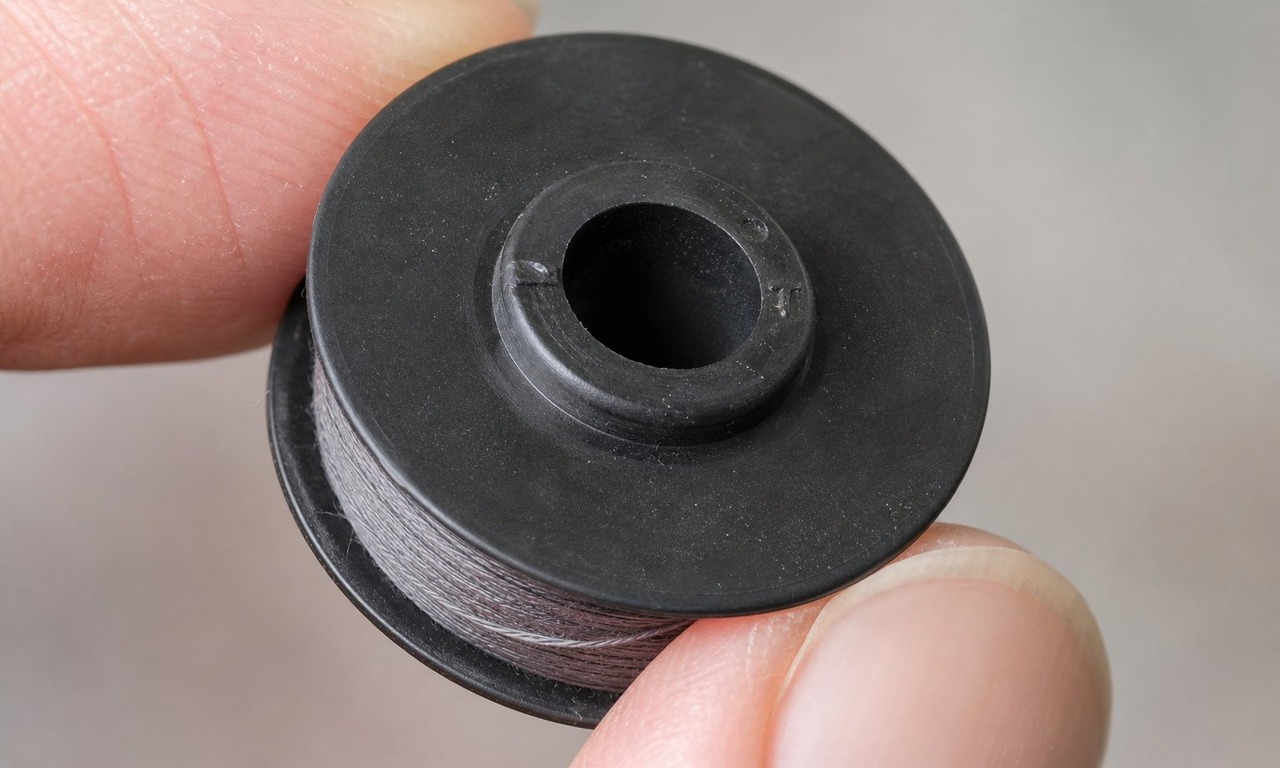

Take the bobbin out and read the centre post. A J means a genuine Janome Class 15. Drop it back in so the thread unwinds in the direction your manual shows, which on most Janome drop-ins is anticlockwise as you look at the bobbin.

Then pull the thread gently. It should come away with light, even resistance all the way round. If one part of the turn is stiff and another is slack, the bobbin is out of round or badly wound and no re-threading will fix it.

Step 4: Clean the bobbin area properly

Switch off and unplug the machine first. Remove the needle and the presser foot to open up the space, take out the bobbin, and lift the clear cover and the throat plate.

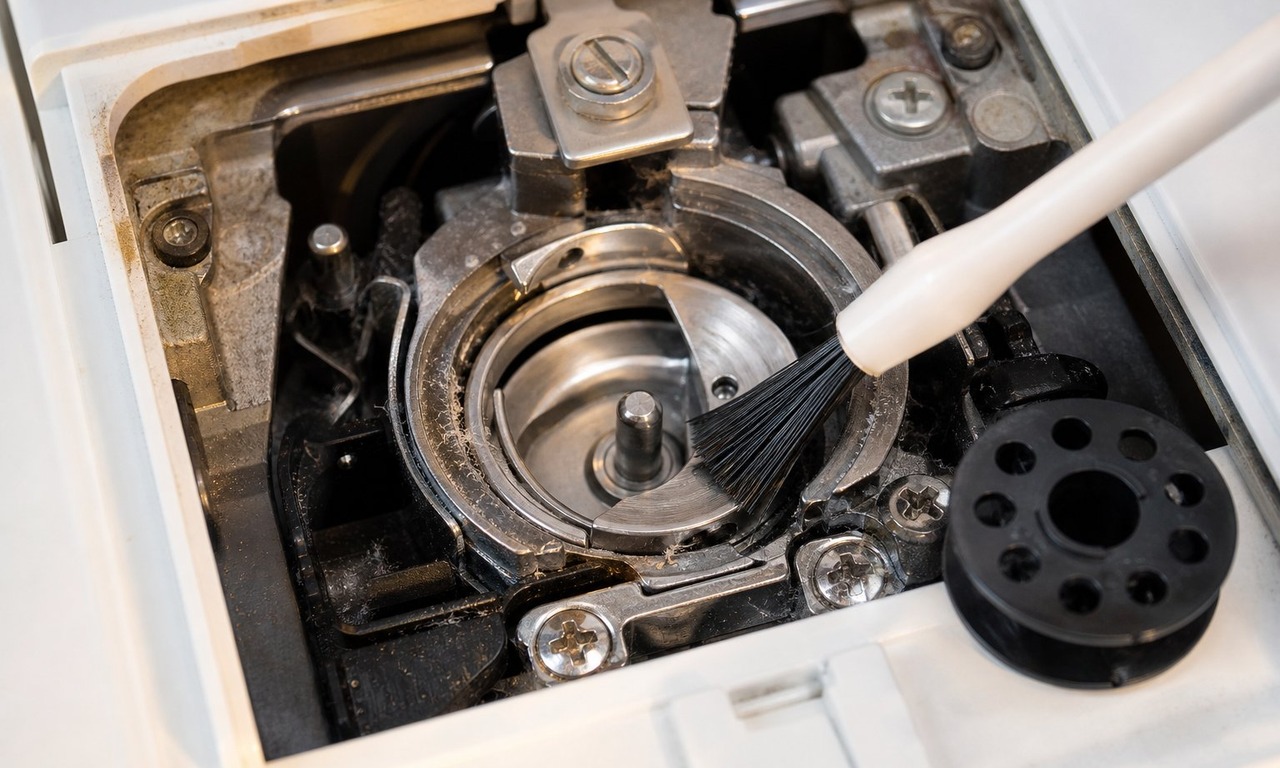

Sweep the race, the area around the tension spring and the inside of the case with the lint brush that came with the machine. A folded business card slid under the spring will lift compacted lint that a brush cannot reach, and that spring is the most skipped spot in the whole routine.

Never use compressed air. It does not remove lint; it drives it deeper into the mechanism and mixes it with the oil to form a grinding paste. A vacuum with a small nozzle, held steady so nothing small gets sucked up, is the safe alternative.

Step 5: Inspect the bobbin case for burrs, cracks and seating

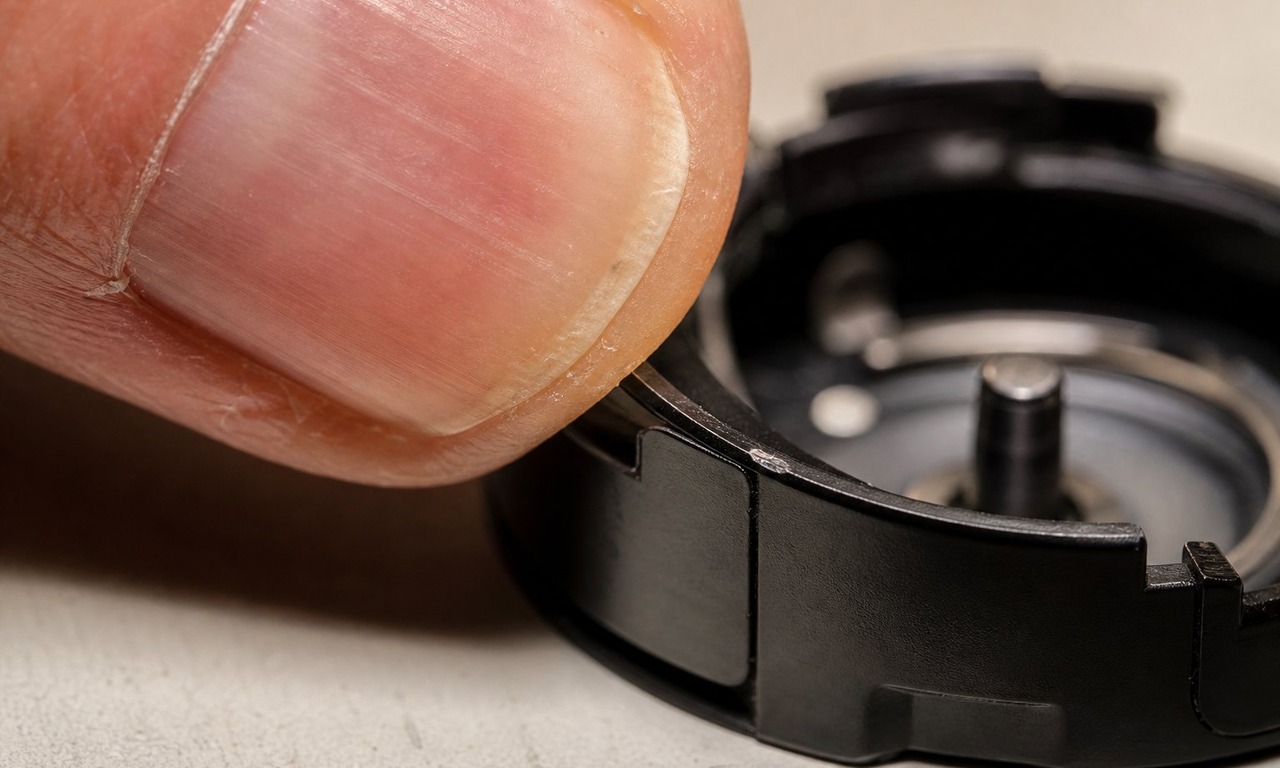

Run a fingernail around the lip of the case and along the hook tip. A nick catches and shreds thread on every pass, and it is usually made by the needle itself after a mistimed stitch. On a metal front-load case a fine abrasive can polish a small burr away. On the plastic case used by drop-in machines, damage rarely polishes out; replace the part.

Refit it carefully. The metal finger at the front has to click into the stopper in the race. A case that is in but not seated will rattle, jump and eventually take a needle through it.

Step 6: Check the bobbin winding

A badly wound spool mimics a tension fault exactly. Hold a filled one up to a window: if you can see daylight through the layers, it is too loose. If the thread feels hard and the sides bulge, it is too tight.

Rewind slowly and evenly, one colour per bobbin, and let the winder fill to its own stop rather than to a guess. Overfilled spools rub the cover plate, and that rub shows up as a stitch fault rather than as the mechanical noise it is.

Step 7: Read the stitch before you touch the tension dial

Most mechanical Janome models run a tension dial from 0 to 9, with 4 to 5 the balanced default for medium-weight fabric. Leave it there unless the stitch tells you to move it.

Step 8: Oil the felt wick, one drop only

Janome drop-in machines have a small felt wick recessed under the bobbin area. It takes one drop of sewing machine oil, not two and not a coat. Oil on the case surface or on the hook makes the thread slip and produces exactly the loops-on-the-back symptom you are trying to cure.

Use sewing machine oil only. Never WD-40, never 3-in-1, and never a spray. Some modern computerised Janome models are factory-sealed and take no oil at all; check your manual before you put a drop anywhere.

Step 9: Know where the DIY line is

Everything above is a home fix. These are not: hook timing that is genuinely out, a visibly bent or chipped hook, a broken or bent cover tension spring, or an electrical fault. Those need a technician.

A standard service and tune-up at a Janome dealer sits somewhere around $80 to $150 depending on what is found, with computerised models at the top of that range. The useful rule is whether the quote approaches half the price of the machine. On a basic mechanical model that cost under $200, a major repair rarely makes sense; on a machine that cost several hundred, it nearly always does.

Bobbin Winding Faults and What They Look Like

Winding problems are the second-largest group of faults blamed on the lower half of the machine, and they are the easiest to diagnose because the evidence is sitting in your hand.

An uneven wind is the one hardest to spot and the most damaging, because it does not look wrong until the thread starts dragging at one point in each revolution. That drag reads as an intermittent tension fault: the stitch is fine, then bunches for an inch, then recovers. If your problem comes and goes with a rhythm, suspect the winding before you suspect anything mechanical.

Wind slowly. The fast setting on a winder is for filling a lot of them quickly, not for filling one well, and a spool wound at speed is more likely to have the thread cross over itself and jam under the tension spring.

Thread Weight: The Variable Almost Nobody Checks

Two threads that look the same on the spool can behave very differently in the machine. Thicker thread needs more room in the tension discs and a larger needle eye; finer thread needs less. Put a heavy decorative thread in the bobbin while the top has an ordinary sewing thread and the two will never balance, no matter where the dial sits.

Lower thread is normally finer than the thread you sew with on top. That is by design, not by accident. The lower thread has to pass through the case spring, round the race and up through the fabric, and a heavy thread asked to do that will drag and then snap.

Three rules cover most of it:

• Keep the top and bottom threads the same fibre where you can, so both take up moisture and shrink at the same rate when washed.
• Use a fresh needle size when you change thread weight, not just when you change fabric.
• Never mix a heavy lower thread with a fine top thread and then adjust the dial to compensate. The imbalance is in the thread, not in the setting.

Old thread is its own fault. Cotton thread that has sat on a spool for years goes brittle and snaps under tension that it would once have carried easily, and the resulting breaks look exactly like a burr on the hook. If a spool is old enough that you cannot remember buying it, and the breaks keep happening in the same place, test with a fresh spool before you take anything apart.

Symptom to Step: The Quick Table

The Routine That Stops It Happening

A brush-out takes under a minute and prevents most of what this page describes.

If your machine has not been used for months, or you sew in a dusty room, treat every interval on that table as shorter. Lint does not settle evenly, and the first place it packs is the race.

Watch the Bobbin Area Come Apart

The first video shows the case coming out of a drop-in machine and going back in, which is the part most people get wrong.

The second walks through the maintenance routine around a drop-in bobbin, including the cleaning that prevents the faults above.

Start With the Foot

If you take one thing from this page, take the presser foot. Raising it before threading costs nothing, takes no tools and prevents the single fault most often blamed on the bobbin.

For the wider picture on stitch formation, Singer bobbin tension problems covers the front-load case and its screw in detail, and why a sewing machine stops catching the bottom thread walks through the timing checks that belong to a technician.

About This Guide

Every fix here has been worked through by Mithu on her own Janome, in the order given, including the afternoon she spent adjusting a bobbin case that turned out to have nothing wrong with it because the presser foot was down when she threaded the top. The order in this guide is the order that would have saved her that afternoon.

The bobbin classes, needle system and tension defaults follow Janome’s own specifications for the drop-in models, and the cleaning and oiling rules follow what the manufacturer states for the felt wick. Every check listed can be repeated on your own machine with a brush, a needle and a manual.
