Singer Sewing Machine Bobbin Winding Problems? 7 Checks in Order

Singer bobbin winding problems look like half a dozen different faults and are usually two: the winder is not being driven, or the thread is not going where it should. This guide works through them in the order a repair bench would, from the tyre that grips the handwheel to the tension that decides whether the bobbin fills flat or bulges. Each check ends with something you can see or feel, so you know whether to move on.

The Singer family makes this harder than it needs to be, because a 1950s 15-91 and a 2024 Heavy Duty have almost nothing in common at the winder. One has a rubber tyre pressed against a solid handwheel and a winder you push across by hand. The other has a small driven spindle with a plastic stop that trips when the bobbin is full. Both are covered below, and every check says which one it is talking about.

How the Winder Gets Its Drive

Two designs, and the check you need depends on which one you own. On a vintage Singer the winder is a small assembly bolted to the back of the machine with a bobbin spindle on one side and a rubber tyre on the other. You push the assembly sideways until the tyre touches the handwheel, and the turning wheel drives the tyre, which drives the spindle. Nothing electrical is involved, and the tyre is the part that wears out, because after forty years against a steel wheel it hardens and glazes.

On a modern Singer the winder runs from the machine’s own motor through a belt and a small pulley. Engagement is a lever or a sliding stop that also disengages the needle, and winding stops by itself when the bobbin is full. The parts that give trouble there are the stop, which can sit slightly out of position, and the belt, which slackens as it ages.

The order of the checks matters because the first two cover the drive and the next three cover the thread. Between them they account for almost every winder fault that does not involve a broken part. Nothing here needs the machine opened, and nothing here needs a part bought before you have found the fault.

Check 1: Is the Winder Engaged?

Push the spindle to the right, or flip the lever, and listen for it to settle. On a vintage machine the tyre should be touching the handwheel with light pressure. On a modern machine the needle should stop moving when the winder engages, because that is the mechanism handing the motor over to the winding spindle.

Three things go wrong here, and all three are easy to see. The assembly is not pushed far enough, so the tyre touches the wheel, spins under no load, and slips the moment the thread starts pulling. Push it fully across, then check by turning the wheel by hand that the bobbin turns with it. The second is the handwheel clutch. Many Singers have a centre knob on the handwheel that disengages the needle for darning and free motion work. With that knob undone, the wheel spins and the winder does nothing, because the wheel is no longer connected to the shaft that drives it. Turn the knob clockwise until it takes up, then repeat the test.

The third is the bobbin itself. A bobbin pushed on crooked still turns, but the thread lays down at an angle and the stop never trips. Take it off and put it back until it seats squarely, then look at the tyre while the winder is engaged. If it is not in contact with anything, the bracket has been bent or the wrong spindle has been fitted, and neither of those is a thread problem.

The needle interlock is a safety feature and it is worth checking properly rather than assuming. On a modern Singer the same lever that engages the winder removes the drive from the needle bar, so the needle sits still while your fingers are at the spindle. If the needle keeps stroking while the winder is engaged, stop using the winder and get the selector looked at. On some vintage machines the needle continues to run when the winder is pushed across, and that is normal for the design, so wind with the needle unthreaded and your fingers well clear of the needle bar.

Check 2: The Rubber Tyre or the Drive Belt

A tyre that has turned hard and shiny is the classic vintage Singer failure, and it announces itself in a particular way: the winder spins freely with an empty bobbin, then slows and stops once a few layers of thread are pulling back against it. That load-dependent stalling is the signature, and it is why an unloaded test tells you the drive is fine when it is not.

Clean it first, because that costs nothing. Unthread the machine, take the tyre off if it comes off easily, and wipe it and the handwheel rim with a cloth dampened with rubbing alcohol. Old rubber residue leaves an uneven surface, and a tyre cleaned of it often grips again for a while. Do not use oil or a petroleum based cleaner on rubber, because that is what turned it hard. A rubber rejuvenator, left on for twenty to thirty minutes, buys months rather than years.

Then look at the shape. A tyre with a flat worn on one side, cracks round it, or a shine that alcohol will not remove is finished. Roll it across a flat surface and watch where it stops rolling, which is the flat spot, then squeeze it: one that springs back is usable, one that feels like a pencil eraser is not.

A tyre that is still soft but sitting slightly away from the handwheel can be shimmed rather than replaced. Two or three turns of electrical tape on the handwheel rim closes a millimetre of gap, which is enough to lose grip. That is a workshop fix rather than a permanent one, but it gets a bobbin wound tonight. The pivot screw that sets the winder arm is the proper adjustment, and a quarter turn is a large move there.

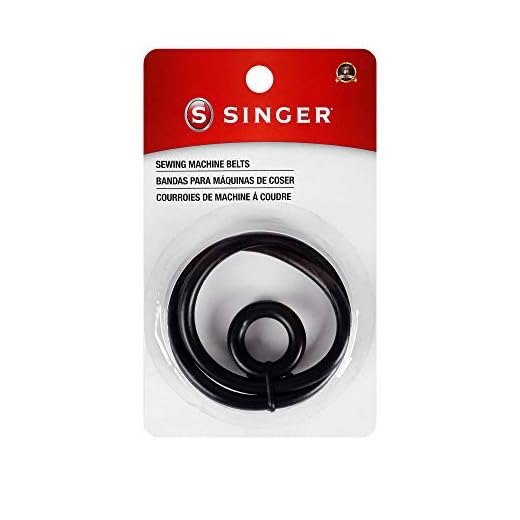

On a modern machine the equivalent part is the belt from the motor to the winder pulley. A slack belt runs the spindle slowly and stalls as the bobbin loads, and the fix is the same as for any belt: check that it sits down in the pulley groove rather than riding on the shoulder of the flange. A belt sitting half off a pulley is common after a machine has been moved or serviced, and it looks fine from above, so look at it from the end of the machine with a light behind it. If the winder turns freely under its own weight with no thread on it, the drive is fine and you should be in Check 3.

Fitting a New Tyre: Parts and Substitutes

Most Singer tyres are a push fit over the winder wheel and need no tools. Order by model rather than by sight: on the Heavy Duty range the tyre is part number 153066, which also fits several current models. Vintage tyres come in a multi size pack, so measure the old one across its outside edge.

If no part is available, a nitrile O ring of the right size does the same job for a fraction of the price. A tyre measuring about five eighths of an inch across the outside is close to a size 014 or 015 O ring, and the wall thickness matters more than the diameter, because a thin ring will not press hard enough. Soak it in hot water for two minutes so it stretches over the wheel, then let it cool in place so it shrinks tight.

Getting a stubborn wheel apart is where people damage things. The wheel is usually held by a small circlip or a set screw on the shaft, and both need the right tool rather than pliers. Once that is off, the wheel lifts away and the old tyre peels off. Some assemblies need the shaft out as well, with a spring and a small detent under it, so work over a tray. If nothing moves with reasonable force, stop: a bent spindle is worse than a glazed tyre.

Two failures to avoid. A tyre that is too thick holds the winder arm away from the handwheel so it never engages, and forcing the arm over bends the bracket. One that is too thin gives the slip back. A winder that grips for a second and then slips has the wrong size on it, which is a fit problem, not a cleaning problem.

The Five Minute Bench Test

Before you buy anything, run the three tests a repair bench runs, in this order, and write each result down. A winder that passes the grip test and fails the timed bobbin has a slipping tyre, and one that passes all three and still gives a bad bobbin has a thread path or guide problem.

The first is the grip test. Unthread the machine, put an empty bobbin on the spindle, engage the winder, and turn the handwheel by hand twenty turns, counting how far the bobbin goes round. It should turn at roughly the same speed as the handwheel. Less than half as far means the tyre is slipping. Then hold the bobbin still with one finger: the handwheel should become noticeably harder to turn, and if it turns freely there is no grip at all, whatever the tyre looks like.

The second is the load test, which catches a tyre that only fails under tension. Thread the winder as for real, wind thirty turns, then try to slow the bobbin with a fingertip. A good tyre keeps turning against light pressure and the thread stays firm. A glazed one stalls, and the thread goes slack the moment you let go: the spindle stopped while the handwheel kept going.

The third is the timed bobbin. Wind a full class 15 bobbin at your normal speed and time it. On a machine that grips, ordinary polyester fills it in well under two minutes. Four or five minutes, or a bobbin that fills a third of the way and then slows, means the drive is losing grip as the load comes on.

Check 3: The Thread Path to the Bobbin

The winder has its own tension, separate from the needle tension, set by a small disc or a spring plate near the spindle. The thread goes from the spool, through the guide, between the discs, and onto the bobbin. It has to be between them: thread laid over the top of the discs winds a bobbin loose enough to jam the hook, and the reader then blames the case.

Follow the path on the machine itself rather than from memory. Most modern Singers have a diagram moulded into the plastic an inch from the winder, and it shows the direction. On a vintage machine the path is usually a single guide and a spring plate with a screw. If you have never threaded this particular machine, the Singer bobbin threading guide walks the path from spool to spindle for both designs.

The direction the thread leaves the bobbin matters too. On a class 15 bobbin it should leave the bobbin in the direction that matches the arrow on the case, and winding it the other way means the bobbin is loaded backwards, which produces a nest of thread under the fabric on the first seam. That is the same symptom as bobbin thread bunching up, so it is worth separating the two before you adjust anything else.

If the thread snaps as the bobbin fills, the winding tension is too tight: slacken the disc a quarter turn and wind again. A spongy, loose bobbin means the opposite, so tighten it the same way. Most threads want a light, even tension, firm enough to lay flat and never tight enough to stretch. Dust in the disc makes the tension erratic from one bobbin to the next, so wipe it while you are here.

Check 4: Does the Thread Fill the Bobbin Evenly?

An even bobbin is wound by the guide finger travelling slowly from one flange to the other as the bobbin turns. A bulging one is wound by a guide that is not moving, or by someone steering the thread with a thumb to keep it away from the flanges.

On a modern Singer the guide is part of the winding assembly and moves on its own. If the fill piles up in one place, the guide is stuck, obstructed by a thread wrap, or the arm that drives it has come adrift. Take the bobbin off, pick the thread out with tweezers, and check the guide slides across its full travel. If it moves and the fill is still lumpy, the bobbin is not seated squarely on the spindle.

On a vintage machine there is often no guide at all, and the operator is supposed to move the thread slowly across the bobbin. If that is your machine, the technique is to hold the thread between two fingers a few centimetres above the bobbin and drift it steadily from one side to the other, once per layer, rather than parking it in one spot and letting the thread build a cone. It is slower and it is the correct method for the machine you own.

A coned bobbin, or one with more thread at one flange, feeds at an inconsistent tension and produces stitches that change partway through a seam. It is not a case fault and no screwdriver work on the case will fix it. Stand the wound bobbin on a flat surface and look across it at eye level: a good fill has a level top, and a bad one has a hump, a dip or a slope.

Check 5: Is It Winding Too Fast or Too Slow?

Speed is a real variable on a winder, and it is the one nobody thinks to change.

A bobbin wound at full pedal is wound under the least control: the thread lays down loosely, the tension disc chatters, and the fill is uneven even when the guide is working. Wind at half speed on a modern machine, with the pedal pressed about a third of the way down. On a vintage treadle or hand crank, wind slowly and evenly, because the tyre has less grip at speed and will slip exactly when the bobbin is nearly full, which is the moment the load is greatest.

A winder that runs too slowly is usually a slipping tyre or a slack belt rather than a speed setting, so go back to Check 2 before you assume the machine is underpowered. That distinction matters, because a slow winder that is blamed on the motor sends people looking for a service the machine does not need.

Stop winding when the thread reaches the inner edge of the flanges, not when it reaches the outside of them. An overfilled bobbin rubs the case, and on a machine with tight clearance it will jam the hook on the first stitch. Most modern Singers have a stop that trips at the right point. If yours trips late, wind to the line by eye and take the bobbin off by hand, and if it trips early, wind the rest with the stop held clear and watch the line instead.

Check 6: Loose, Tight or Bulging Bobbins

This is where two different faults are most often confused, and getting the order right saves an hour.

Winding tension is set at the winder and decides how the thread sits on the bobbin. Case tension is set on the bobbin case and decides how the thread leaves it. A bobbin wound too tight will still feed correctly from a correctly set case, and a bobbin wound correctly will loop under the fabric if the case is loose. Test them separately rather than turning the case screw to compensate for a bad wind.

The test for the case is the one a repair bench uses: load the bobbin, hold the case by the thread tail and let it hang. The case should drop a few centimetres and stop, with a small bounce. One that runs to the end of the thread is too loose. One that will not move at all is too tight.

If the case is right and the stitches still loop underneath, suspect the top thread rather than the bobbin, and work through the Singer bobbin tension checks before touching the case screw again. Adjust the case in eighth of a turn steps and mark the starting position with a pen, because returning to it later is much harder than it sounds. A machine that will not pick up the bobbin thread is a different fault again, and none of this screwdriver work will find it.

Check 7: When the Winder Needs a Repair Shop

Four faults stop being owner work, and each of them is visible without dismantling anything.

A spindle that is bent. Put an empty bobbin on and turn it by hand: one that wobbles, or that runs out of true, was bent by someone leaning on the assembly or by a machine that fell, and winding on a bent spindle produces a bobbin that rubs the case. A bracket that is cracked or loose is the other half of the same check: rock the assembly gently, and any movement at the mounting screws beyond the sideways slide the design allows means the mount is damaged. A winder held on by one screw never holds its pressure against the handwheel.

Then there is a stripped or slipping gear inside the machine. On a modern Singer the winder takes its drive from inside the head, and a gear that has lost teeth gives you a winder that turns intermittently with an audible tick. Related to it is a winder that engages and disengages on its own, which is usually the stop or the selector. On machines where the same lever disengages the needle, that fault can leave the needle running while you are loading a bobbin, which is a safety problem rather than a convenience one.

A winder assembly for a common model is often cheap and swaps with two screws, so price the first two before you decide. The last two are inside the machine, and that is where a shop earns its money. If the winder works but the pressure against the handwheel has gone soft, the arm spring can be bent very slightly to raise it, and the pivot screw turned a quarter at a time, but only once the tyre is known to be good.

The Symptom Table

Seven rows, and five of them come back to a tyre, a thread path or a full bobbin. That ratio is worth remembering before you start buying parts.

Winding a Singer Bobbin in Order

Once the checks above are clear, the winding itself has an order that produces a flat, consistent bobbin every time.

1. Unthread the needle and take the thread back to the winder guide, so nothing is wound under needle tension.
2. Push the empty bobbin onto the spindle until it seats squarely, with the flange that the thread needs facing the guide.
3. Engage the winder fully, and on a modern machine confirm the needle has stopped.
4. Take the thread from the spool through the guide and between the tension discs, in the direction the diagram shows.
5. Hold the thread tail for the first few turns, then let go and steer the thread across the bobbin by hand if the machine has no guide.
6. Wind at half speed, and slow down for the last few turns rather than running at full pedal to the finish.
7. Stop when the thread reaches the inner edge of the flanges.
8. Disengage the winder, cut the thread close to the bobbin, and set the handwheel clutch back to its sewing position.

Two habits from a working bench: keep a bobbin for each thread you use most, so you are never winding one mid project, and never wind from a spool that has been sitting in sunlight, because the outer layers are weaker and will snap under winding tension. The first habit saves more minutes than any tool on this list, and the second saves the bobbins you have already wound.

If You Would Rather Buy a Stand-Alone Winder

Not everyone wants to fix a winder, and on a vintage machine with a hardened tyre and a bent bracket there is a reasonable argument for not fighting it. A stand-alone winder is a small mains powered unit with its own spindle and speed dial, and it winds bobbins off the machine entirely.

What matters when choosing one is the spindle and the speed control, not the brand. A spindle that takes the bobbin class you actually use, a dial that goes slow enough to wind evenly, and a body heavy enough not to walk across the table are the whole specification. A winder that only runs at one fast speed will give you the same loose, lumpy bobbins as a foot pedal held flat.

The trade-off is real. A stand-alone unit does not know your machine’s tension, so you still have to judge the fill by eye, and it does not remove the need to know the thread path on the machine itself. What it does do is take the wear off a tyre that is increasingly hard to source, and it lets you wind five bobbins in the time the machine takes to wind one. For anyone who keeps several colours on the go, that is the whole case for owning one.

Keeping the Winder Working

The winder is the least cleaned part of most machines, because it sits at the back and does not look like it does anything. A minute of cleaning and a light lubricating routine at the interval in the manual will keep it working for the life of the machine.

Brush the lint out of the guide and off the tyre contact every few projects. Lint on the tyre surface is enough to make it slip, and lint in the guide is enough to stop it travelling. A dry brush is all that is needed; do not blow into the assembly, because that drives lint further in.

Oil sparingly and in the right places. A drop on the spindle bush is fine at the interval in the manual; oil on the tyre is not, because oil is what hardens rubber, and oil on a belt glazes it and makes it slip. That single rule covers most of the damage done to winders by well meaning maintenance. If you have already oiled the tyre, clean it with alcohol and expect to replace it sooner than you otherwise would have.

Use the right bobbin class, and store them somewhere dry. A bobbin that is slightly too tall or too narrow will wind unevenly and then catch in the case, and if the bobbins came loose from a bargain bin this is the first thing to check. Damp and dust both attack the thread as well, so a bobbin kept on an open pin for a year will have a dusty outer layer that winds badly and sews worse.

Frequently Asked Questions

Conclusion

A Singer winder that will not fill is usually one of three things: it is not fully engaged, the tyre or belt has lost its grip, or the thread is not passing between the discs. Work the checks in the order above and you will find it inside the first three attempts, which is a great deal better than buying a new bobbin case and finding that nothing changed.

If none of the seven has found it, the next step is the case and the hook rather than the winder, and the Singer bobbin tension checks pick up from there. If the winder has passed every check and the bobbins are still bad, look at the thread itself, because a spool that has degraded with age will fill unevenly on any machine.

Which check found yours, and is your machine old enough to have a tyre at all? More usefully, what did the tyre look like when you finally got it off?

About This Guide

Mithu has repaired domestic machines for 15 years, and she has worked on every winder fault on this page on her own bench, including the drawer of hardened tyres she keeps because the same complaint arrives every month: the winder spins and nothing happens. The order of the checks follows the order she tries them in, engagement and grip before anything is taken apart.

This guide was written from the service information published for domestic Singer machines and checked against the winder designs that appear across the vintage and modern ranges, which is why it separates the tyre driven winders from the motor driven ones instead of describing one mechanism for both. Part numbers and tyre sizes were checked against the current Singer parts listings and against the nitrile ring sizes that machinists use as substitutes, and the bench tests were run on a 15 class winder and on a modern Heavy Duty before either was written up.
